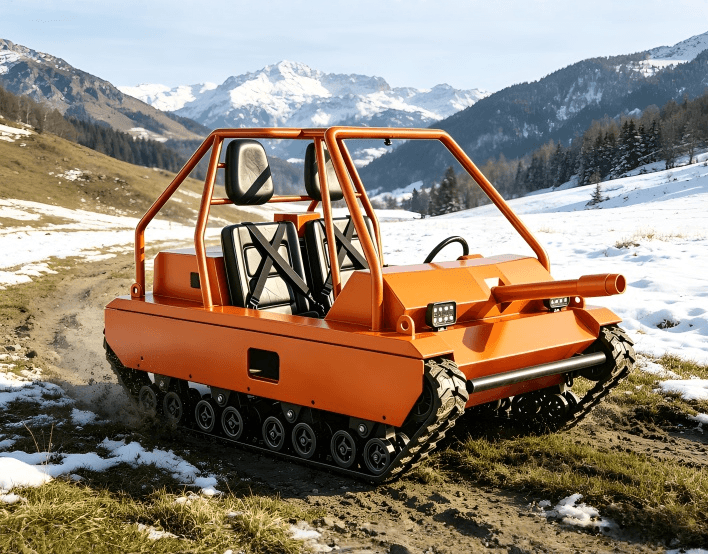

TUE-2 Two-Seater Tracked Off-Road Vehicle

TUE-2 Two-Seater Tracked Off-Road Vehicle

High-performance dual-rider entertainment tank, ideal for real-life CS, laser combat, family amusement, mountain parks, and more outdoor adventure settings.

Product Dimensions： 2200 × 1320 × 1300 mm

Motor Power： 2 × (1.5 kW – 4.5 kW)

Track Width： 150 mm

Send Message Whatsapp

Product Details

Description

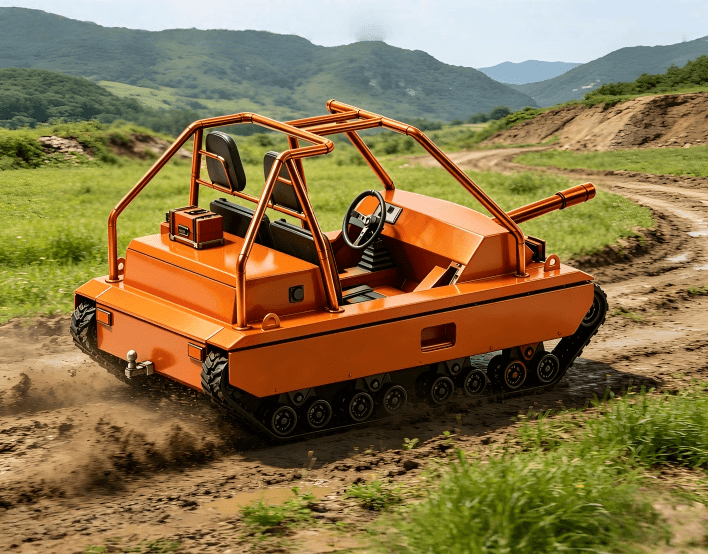

A lightweight, high-performance dual chassis with powerful power, adaptable to various terrains. Perfectly suited for scenic spots, campsites, family parks, and other diverse environments.

Features

Safety System

Guardian Remote Control – Parents can take over control at any time.

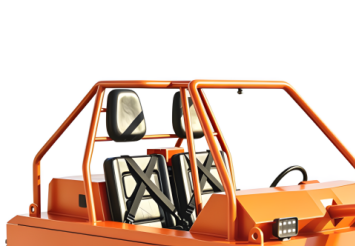

Roll Cage & Safety Belts – Full protection, secure seating.
Bumper Guards – Soft collision protection at low speeds.

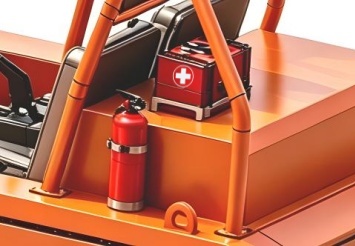

Storage & First Aid Kit – For minor injuries.
Fire Extinguisher – Meets safety regulations.

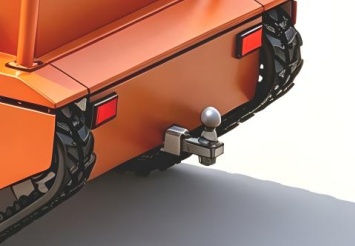

Tow Hooks – Quick recovery when stuck.

Control & Maneuverabilit

Zero Radius Turns – 360° rotation in place, perfect for tight spaces.
Electronic Differential – Smooth turns, easy control, endless fun.

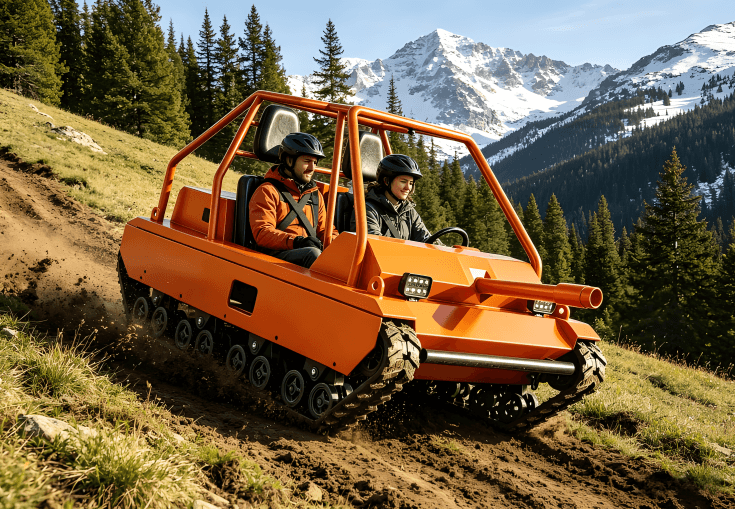

Climbing Ability – Conquer 30° slopes, ideal for various terrains

Comfort & Convenience

Adjustable Steering & Pedals – Adapt to left/right-hand driving.
Adjustable Seats – Comfortable for heights 1.2m-1.9m.

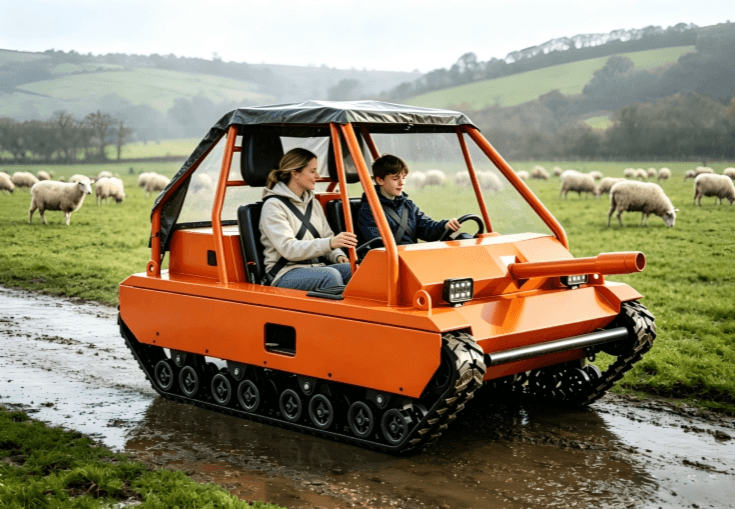

Optional Canopy – All-weather protection.

Modular Desig

Efficient transport and assembly, flexible to needs.

Optional Upgrades

Simulated Sound Effects – Engine roars, gunfire, track noises.

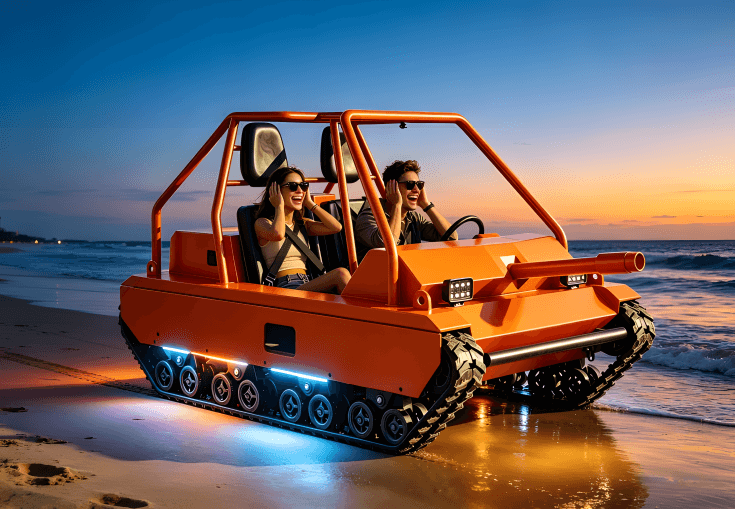

Light Strips – Cool lighting effects for night use.
Interactive Launcher – Safe soft projectiles for an immersive experience.
Emergency Kit & Fire Extinguisher – Complete safety features.

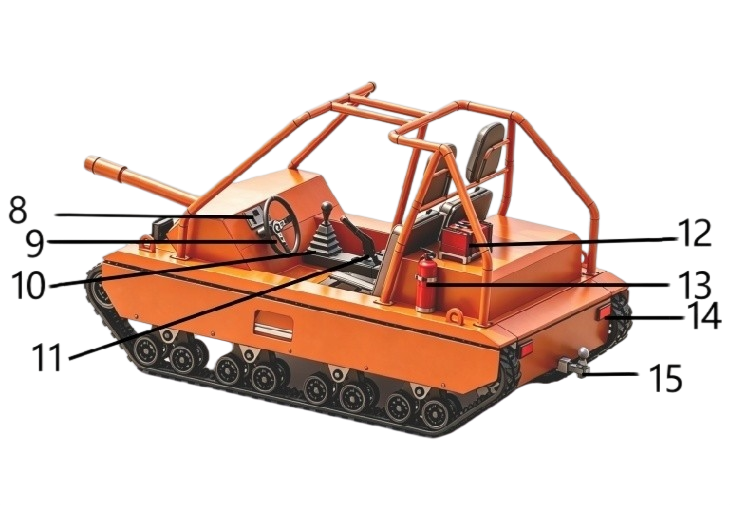

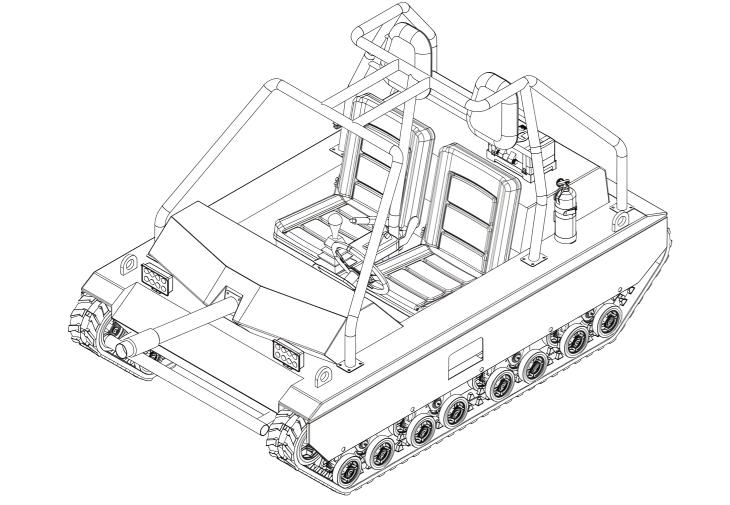

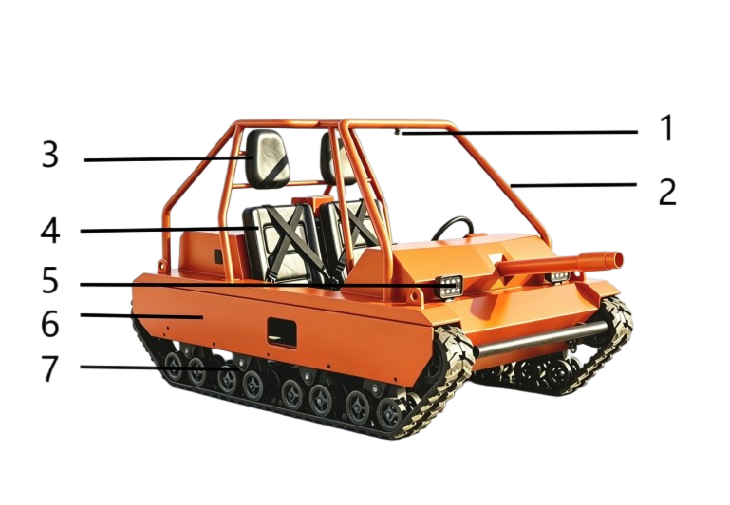

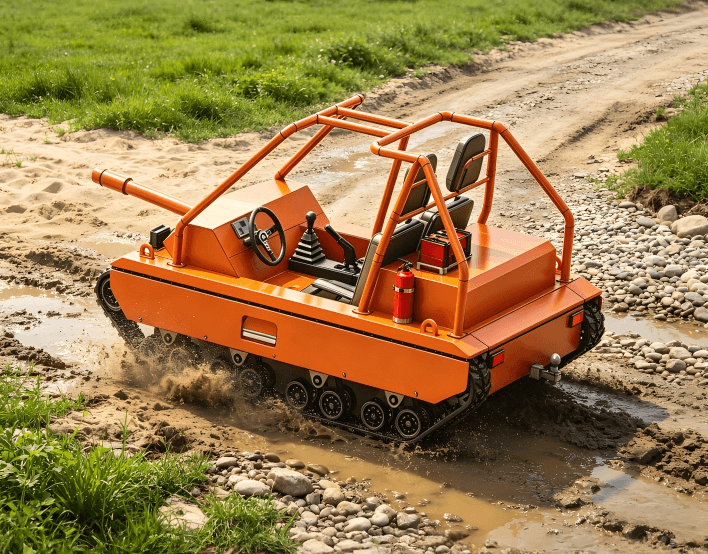

Product Structure Diagram

1. Camera
2. Roll cage
3. Headrest
4. Seat
5. Headlight
6. Overhead panels
7. Tracked chassis assembly

8. Display screen
9. Steering wheel
10. Gear shifter
11. Handbrake
12. First aid kit
13. Fire extinguisher
14. Taillight
15. Tow hook

Parameters

Name	Parameters	Name	Parameters
Product Dimensions	220013201300mm (excluding gun barrel and rear tow hook)	Track Parameters	Width 150mm 72 sections
Motor Power	2x(1.5kw-4.5kw)	Motor Rated Speed	3000-4500RPM
Minimum Ground Clearance	200mm	Maximum Speed	25km/h
Battery Compartment Dimensions	700400200mm	Design Gross Weight	350kg (excluding battery)
Maximum Battery Dimensions	680380175mm	Maximum Climbing Angle	30
Reduction Ratio	1:7.5-20	Output Torque	200-600NM
Load Capacity	200Kg	Protection Rating	IP65

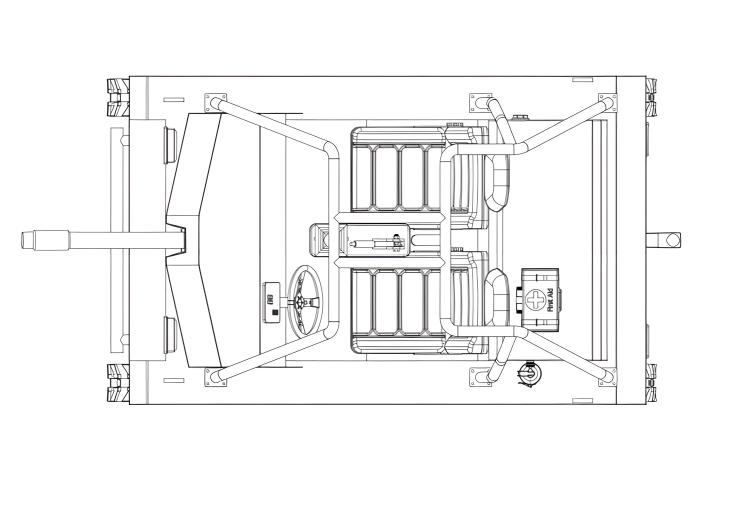

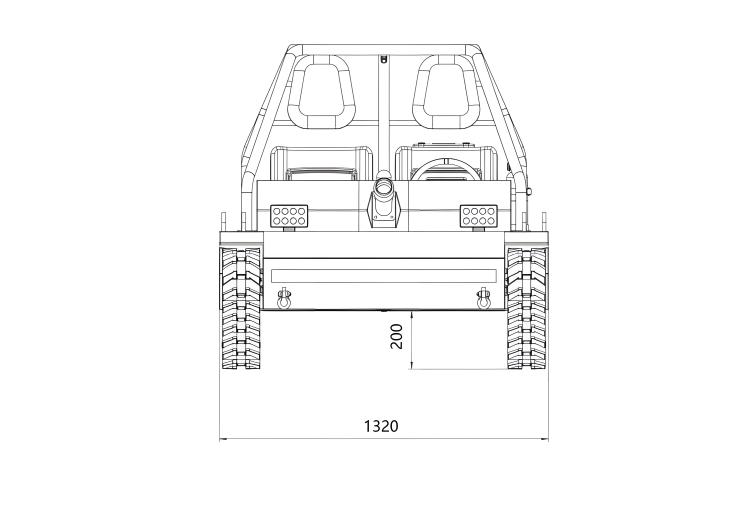

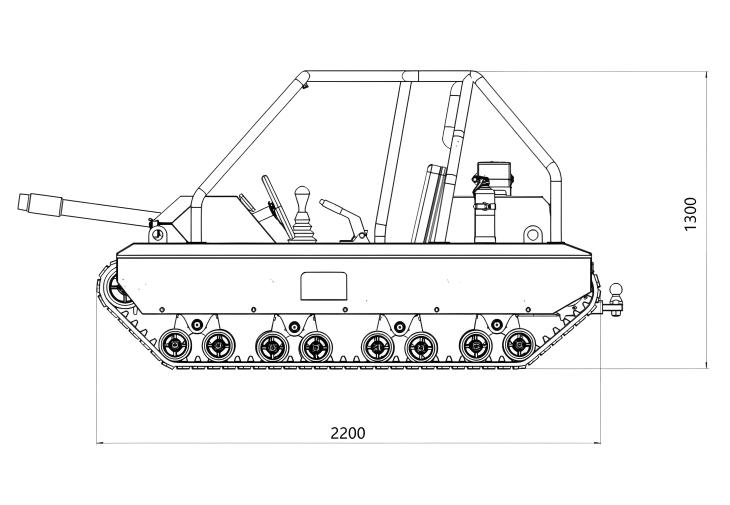

Product Dimensions

Applicable Scenarios
Outdoor real-life CS arenas / Laser combat bases
Mountain theme parks / Off-road camps

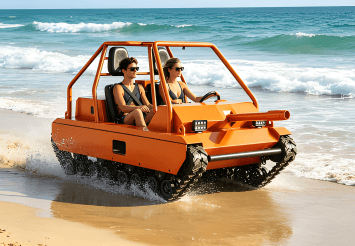

Farms / Orchards / Beaches / Snowfields
Family education / Team building / Commercial amusement projects
