A safety-certified, easy-steering all-terrain electric amusement tank.

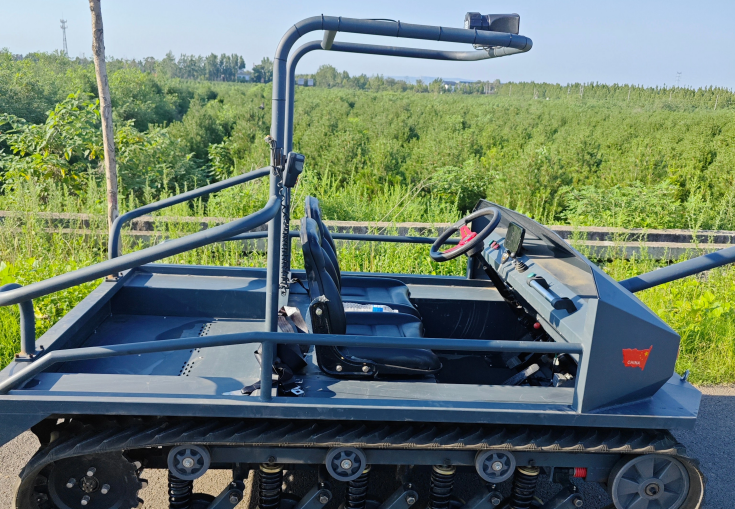

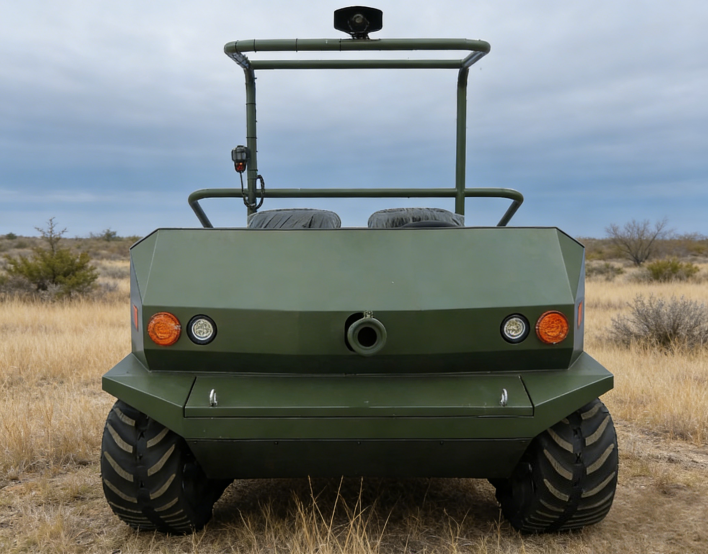

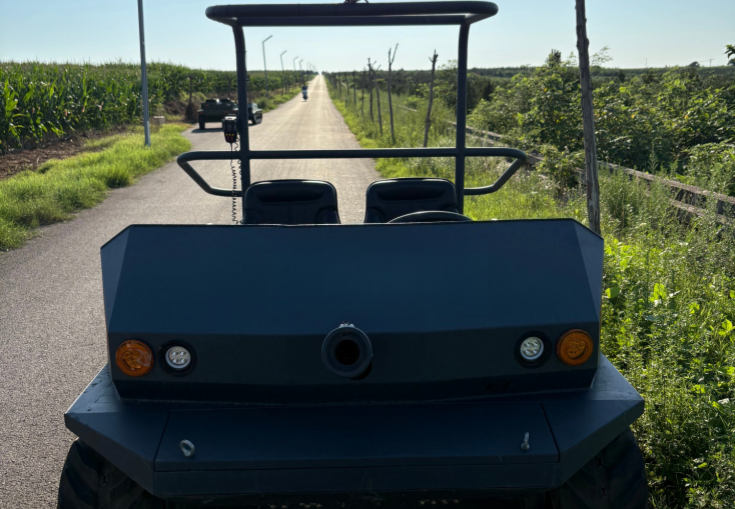

The geometric shape is tough and rugged. The roll cage gives you a sense of security, and there are round headlights on both sides. Identification stickers can be added in the middle. The tracks are firmly connected to ensure smooth running.

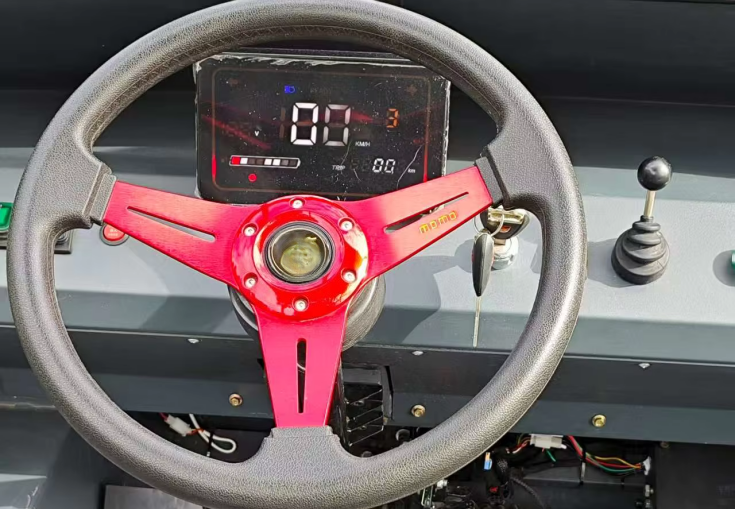

It adopts a steering wheel and electronic differential steering, a convenient gear lever on the center console (adjustable volume and running time), high and low speed adjustment, headlight adjustment and sound cannon device.

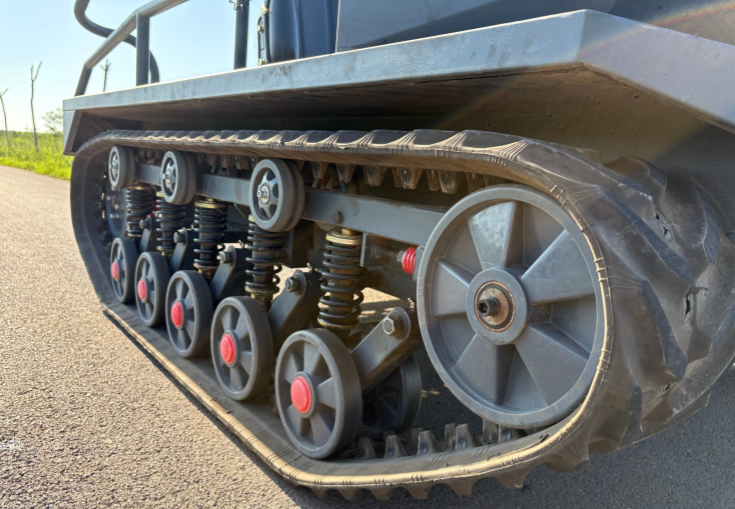

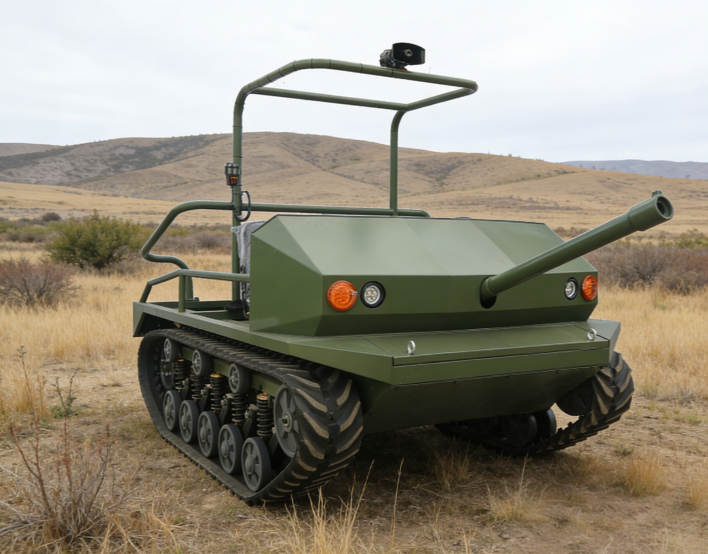

The track is equipped with multiple sets of spring-loaded suspension wheels, and it is a five-wheel independent suspension. The rubber track chassis can adapt to different terrains and ensure smooth driving and riding.

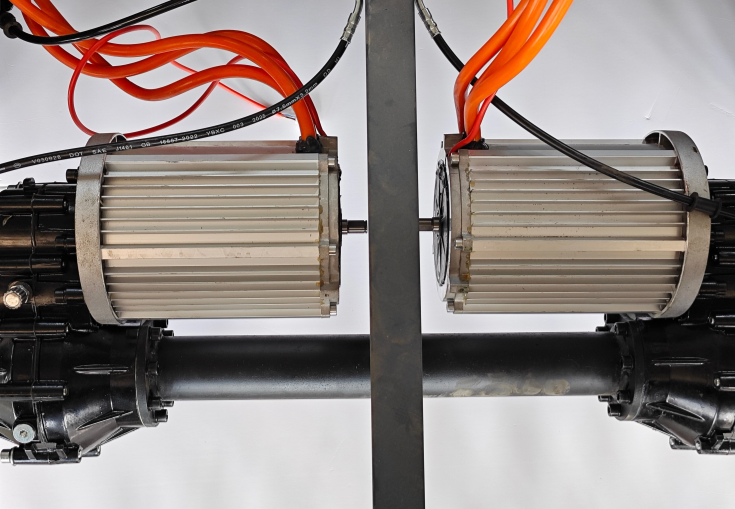

Rear-mounted dual drive, equipped with dual 4000W motors, adopts a rear-mounted dual drive dual electric dual drive axle, providing flexible power output and steering, and can achieve 360-degree U-turns on the spot.

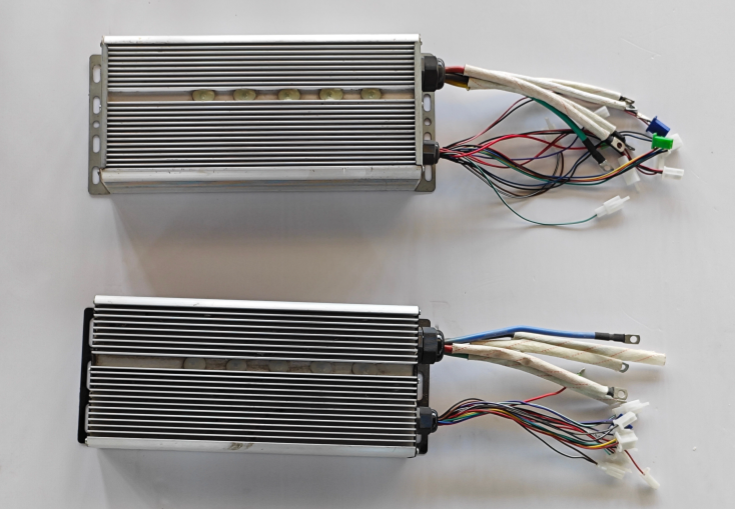

Integrated into the control console, it regulates driving, steering and other instructions. Relying on electronic differential steering technology, it precisely allocates power to ensure stable driving and flexible steering.

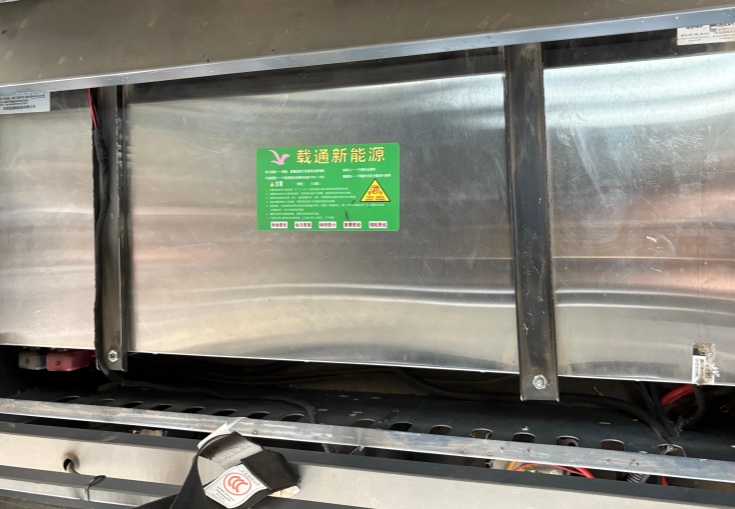

The 72V200Ah lithium battery specification can support a battery life of 6 to 8 hours, and it takes 8 to 10 hours to charge. Balance usage and supplementation.

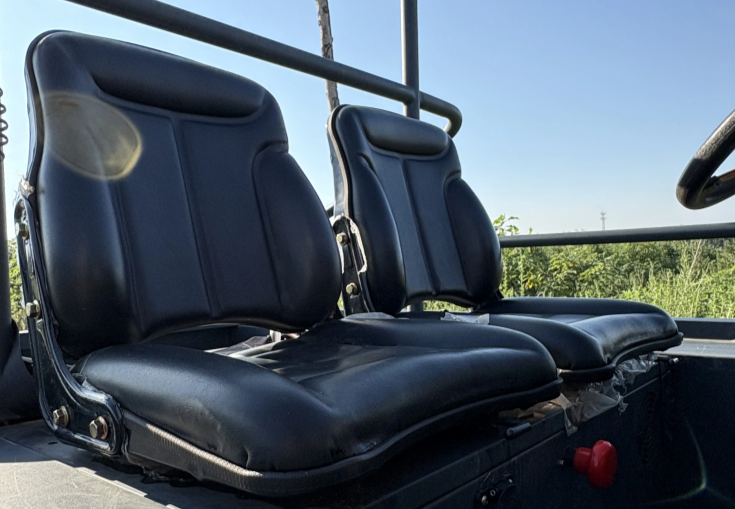

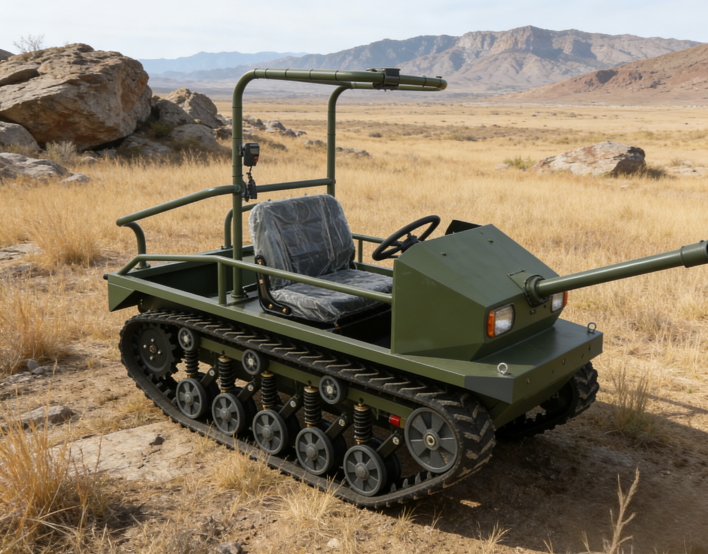

The independent double-seat design is covered with protective materials on the surface, providing a spacious seating area that can be freely adjusted, making it suitable for parent-child and two-person experience scenarios.

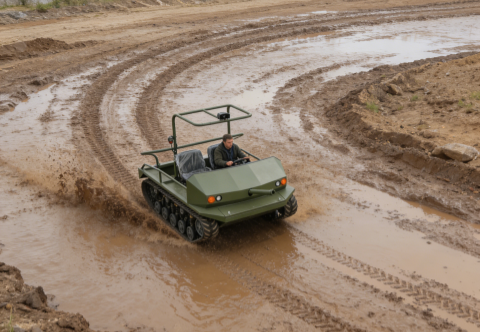

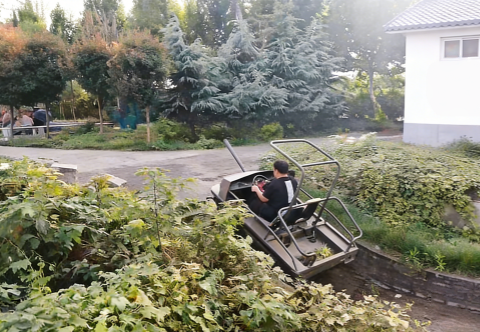

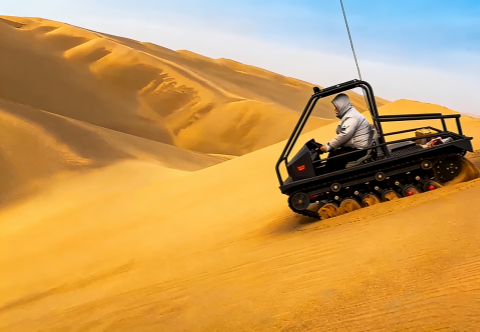

It has a military green appearance, a shape that restores the features of a tank, and a stable structure. It features a 35-degree climbing gradient and a 25-degree dynamic tilt, making it suitable for all terrain venues such as farms, theme parks, scenic spots, and beaches, and catering to both entertainment and scene operation needs.
|
L/W/H |
2650*1500*1700mm |
|
Motor power |
4000W*2 |
|
Battery voltage |
72V200Ah |
|
Driving speed |
30km/h |
|
Preparation quality |
650KG |
|
Driving property |
Rear-mounted dual drive |
|
Braking form |
Double-clamp disc brake |
|
Battery life |
6 to 8 hours |
|
Charging time |
8 to 10 hours |
|
Chassis structure |
Split body type, independent shock absorption, rear-mounted dual-electric dual-drive drive axle |
|
Applicable scenarios |
Amusement parks, ski resorts, parent-child playgrounds, farms, theme parks, beaches and other all-terrain venues. |
The first layer of packaging with cling film
The film is wrapped in three layers to prevent impact damage
Closed packaging in wooden cases
Fumigated wooden crates are used to prevent insects and moisture
