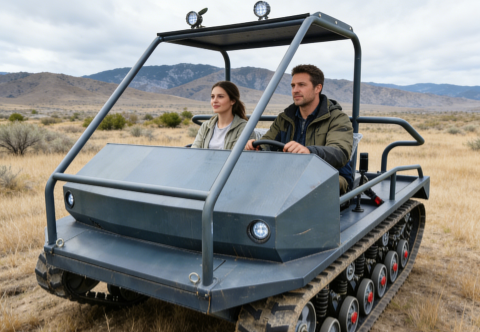

Electric rubber-tracked amusement tank for all-terrain leisure riding.

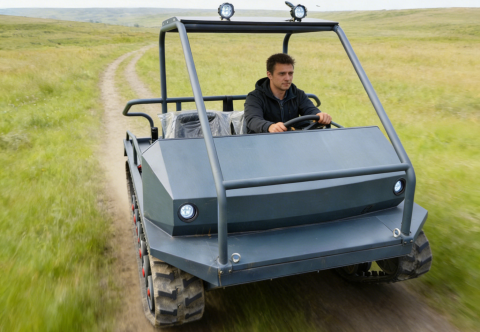

The realistic tank design, combined with a comfortable seat, is highly appealing to both children and adults. Its simple controls make it easy to use in both indoor and outdoor entertainment settings.

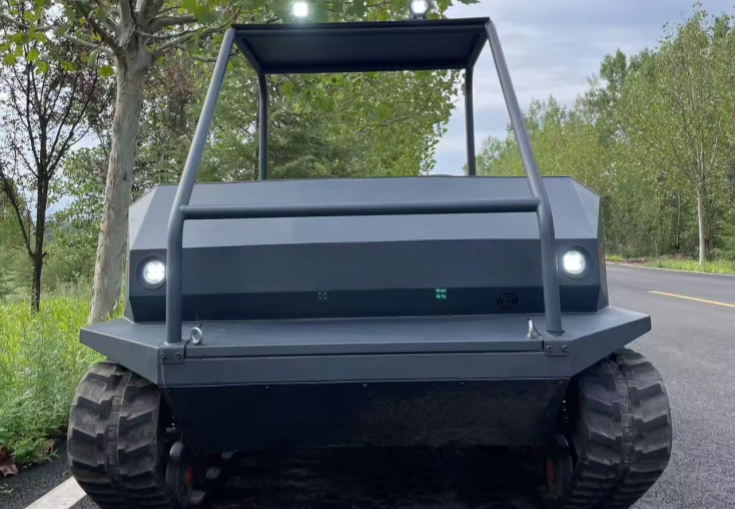

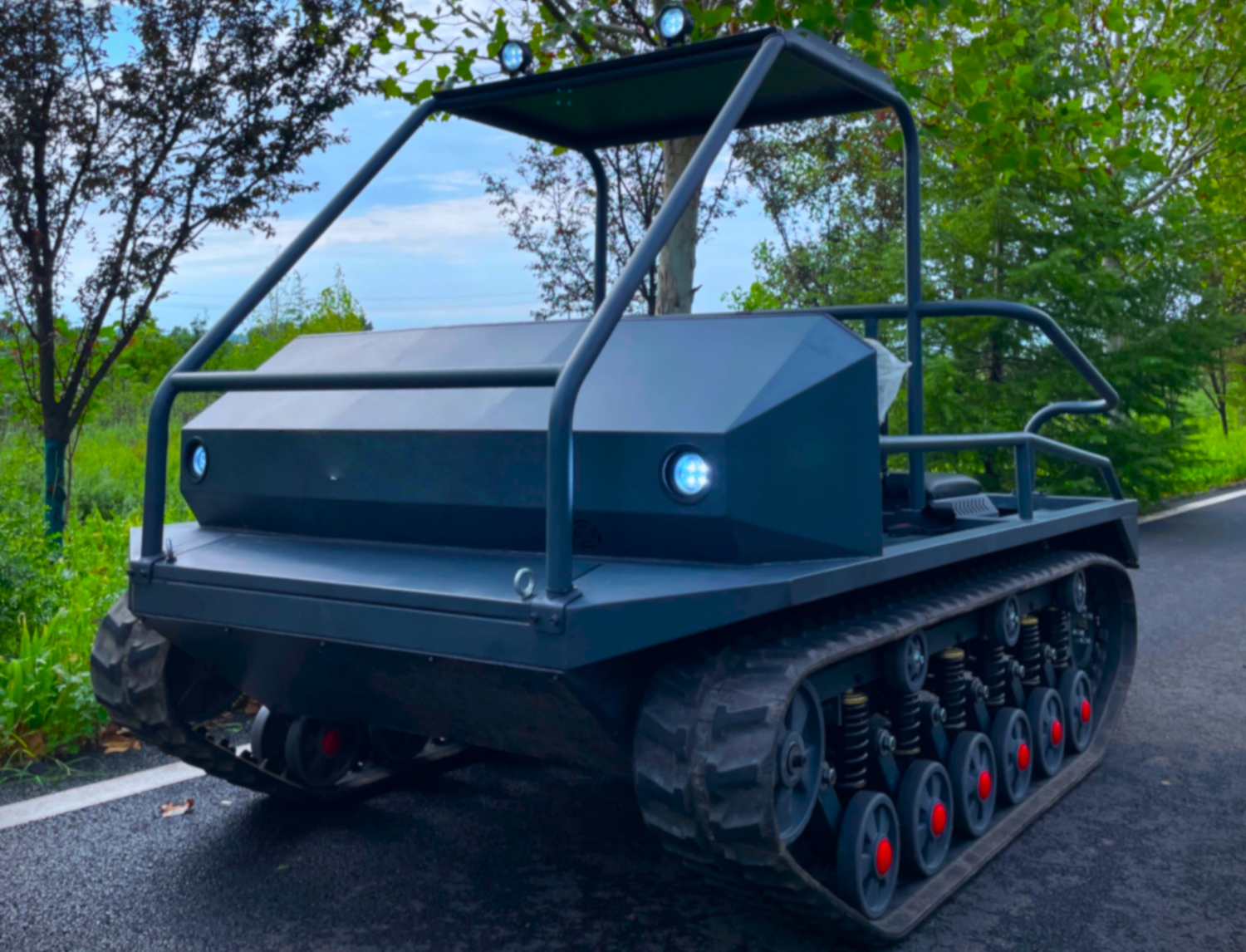

Tough, imposing tracked vehicle. Calm tone, wide tracks, multiple wheels for off-road feel. Open frame roof, tidy headlights. Hardcore industrial style for complex work.

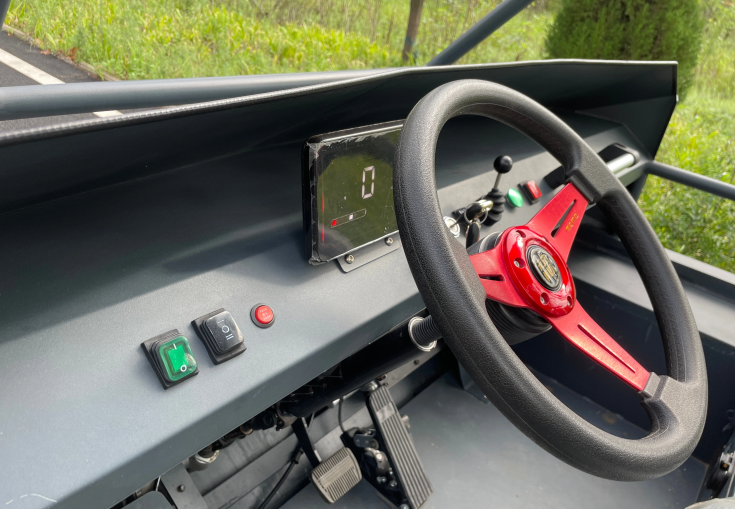

It has a steering wheel, electronic differential steering, a digital instrument panel (speed/battery), high/low speed adjustment, a passenger armrest, expansion plug-ins for customization, and three-mode headlight adjustment.

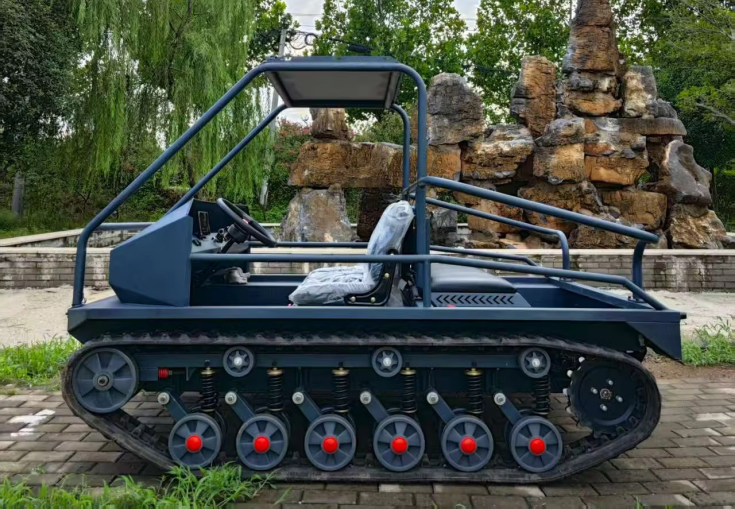

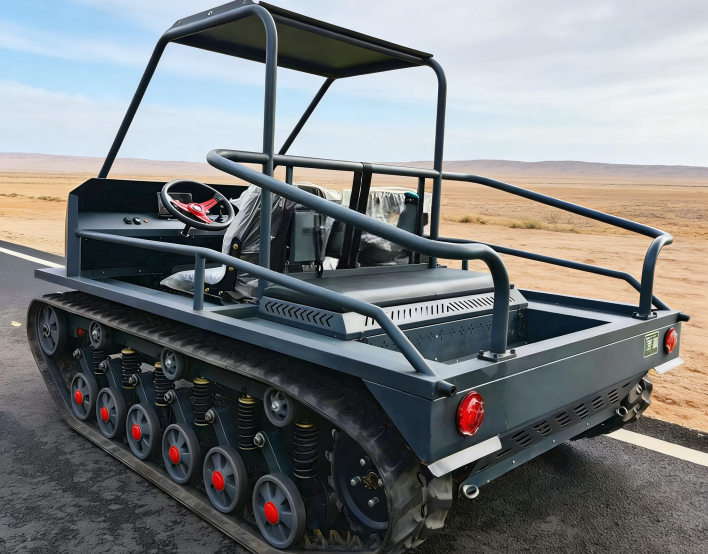

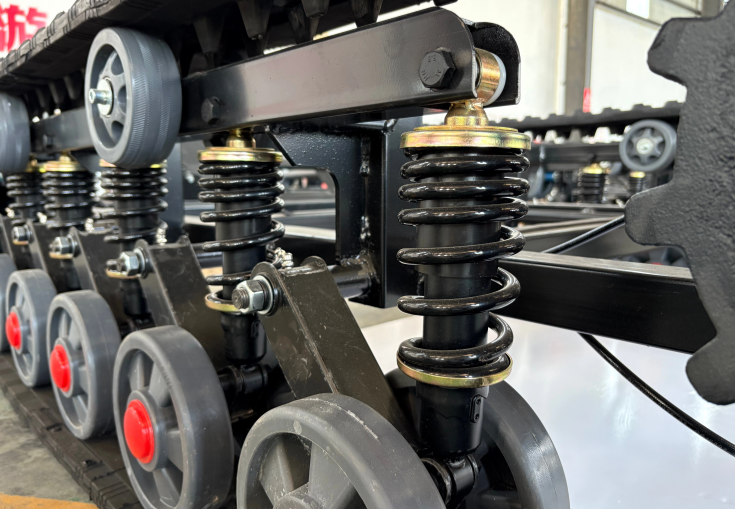

The independently designed chassis suspension has six shock-absorbing supports per side and a double load-bearing beam, providing more internal space. Curb weight: 850KG; full-load weight: 1450KG.

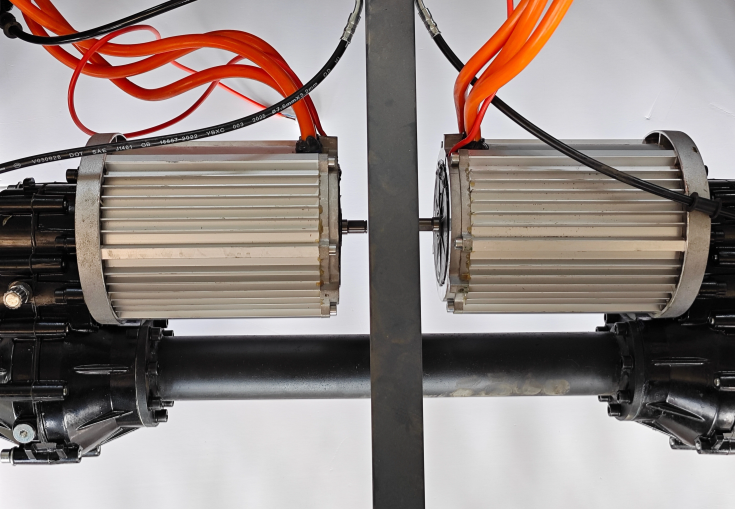

Rear-mounted dual drive, equipped with dual 5000W motors, adopts rear-mounted dual drive dual electric dual drive axles, providing flexible power output and steering, and can achieve 360° in-place 0-radius turns.

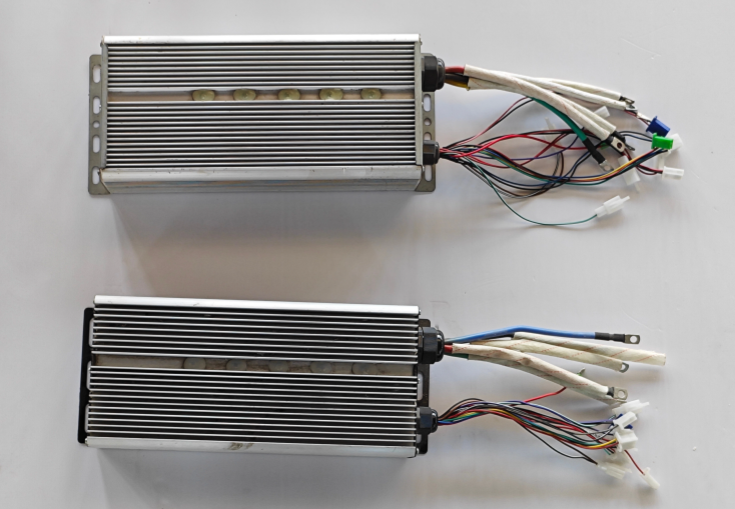

Integrated into the control console, it regulates driving, steering and other instructions. Relying on electronic differential steering technology, it precisely allocates power to ensure stable driving and flexible steering.

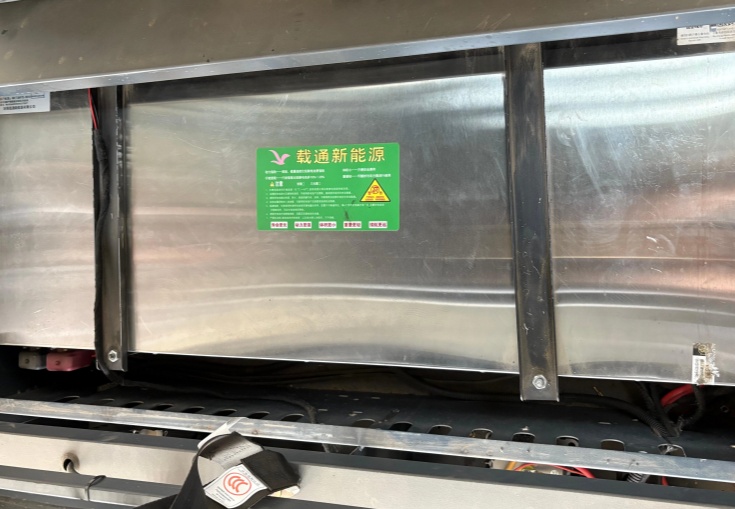

The 72V200Ah lithium battery specification can support a battery life of 6 to 8 hours, and it takes 6 to 8 hours to charge. Balanced use and replenishment can expand battery capacity to achieve a longer battery life.

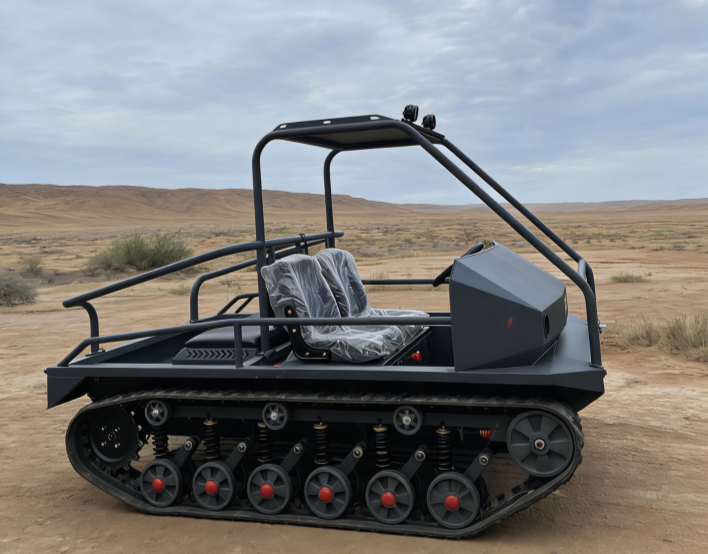

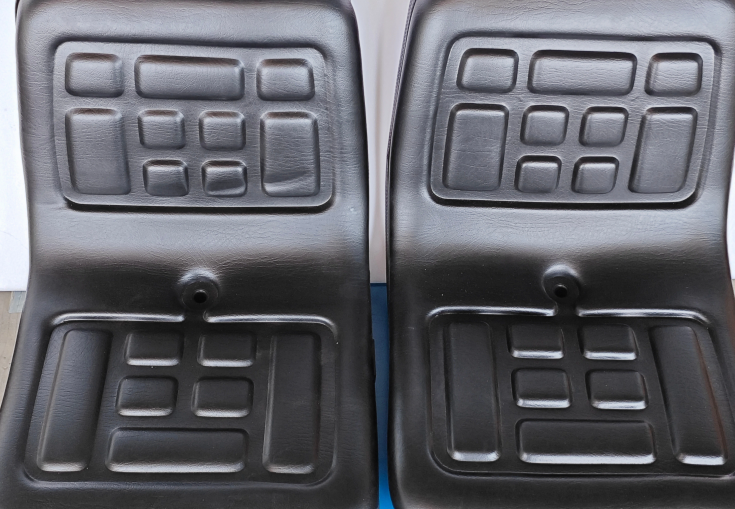

The independent double-seat design is covered with protective materials on the surface, providing a spacious seating area that can be freely adjusted, making it suitable for parent-child and two-person experience scenarios.

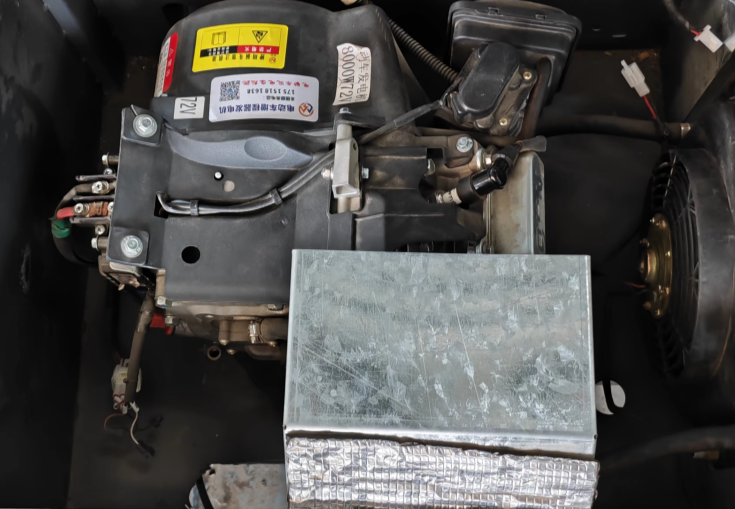

The vehicle body is equipped with a 8000W gasoline generator and an 11L fuel tank as the second energy source to increase the vehicle's range, combining the power of an electric vehicle with the range of a gasoline vehicle.

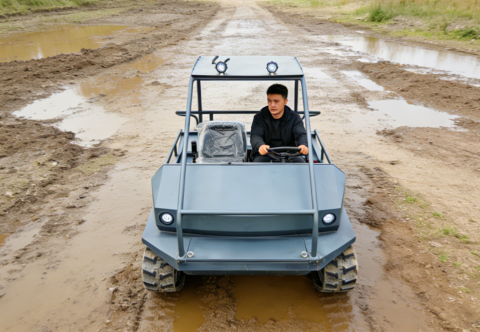

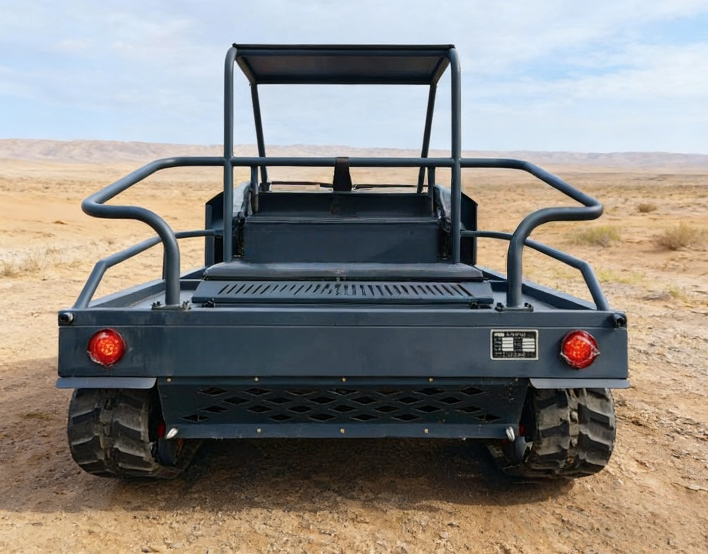

It has a grayish-blue, stable structure with rear storage for daily luggage and goods. With 35° climbing and 25° tilt, it suits all terrains (farms, parks, scenic spots, beaches) for both entertainment and operational needs.
|
L/W/H |
2480*1560*1735mm |
|
Motor power |
5000W*2 |
|
Battery voltage |
70V200Ah |
|
Driving speed |
30km/h |
|
Preparation quality |
850KG |
|
Driving property |
Rear-mounted dual drive |
|
Braking form |
Double-clamp disc brake |
|
Battery life |
6 to 8 hours |
|
Charging time |
8 to 10 hours |
|
Chassis structure |
Split body type, independent shock absorption, rear-mounted dual-electric dual-drive drive axle |
|
Applicable scenarios |
Amusement parks, ski resorts, parent-child playgrounds, farms, theme parks, beaches and other all-terrain venues. |
The first layer of packaging with cling film
The film is wrapped in three layers to prevent impact damage
Closed packaging in wooden cases
Fumigated wooden crates are used to prevent insects and moisture
