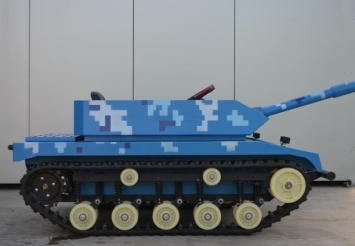

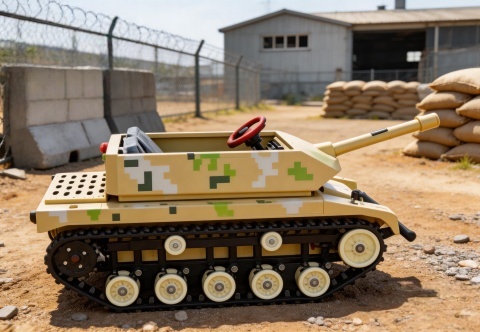

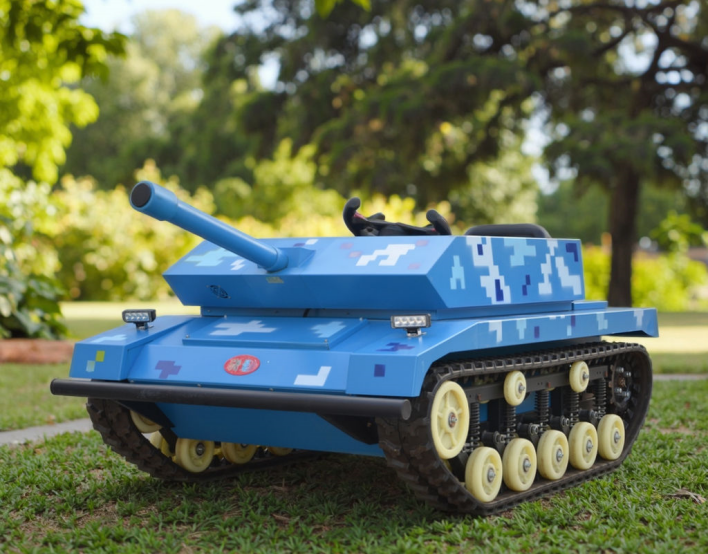

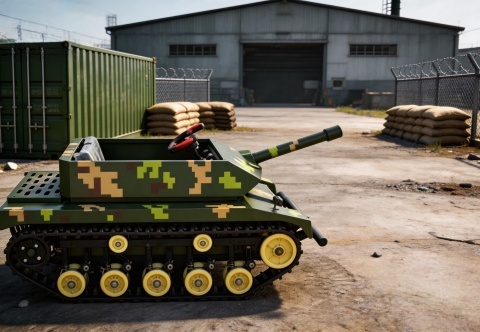

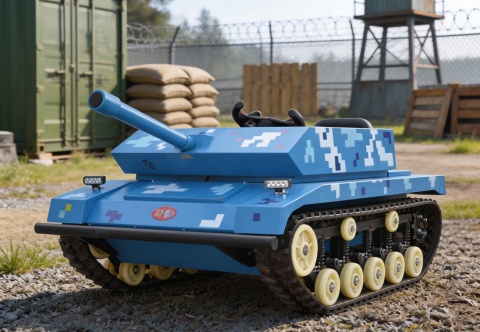

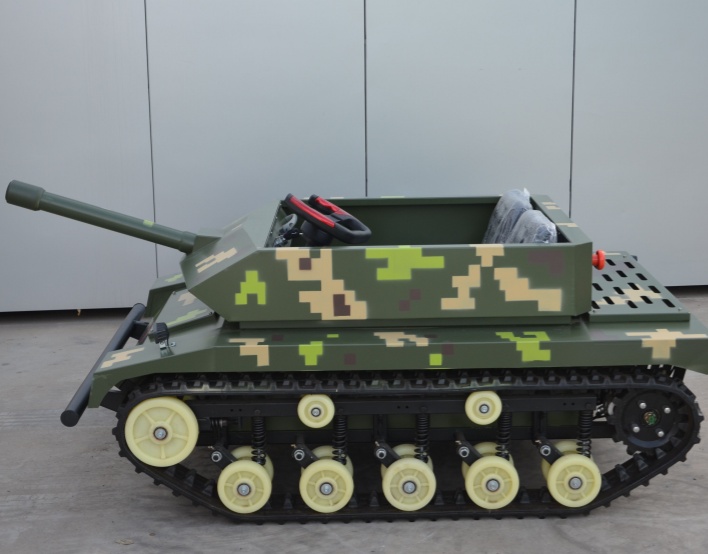

An all-terrain electric rubber crawler tank vehicle designed for amusement park operations.

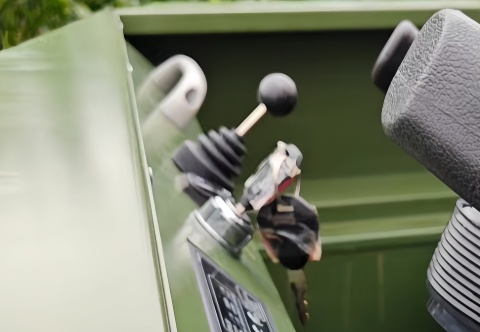

It features steering wheel, electronic differential steering, center console gear lever (adjustable volume/run time), speed range, headlight, and sound cannon controls.

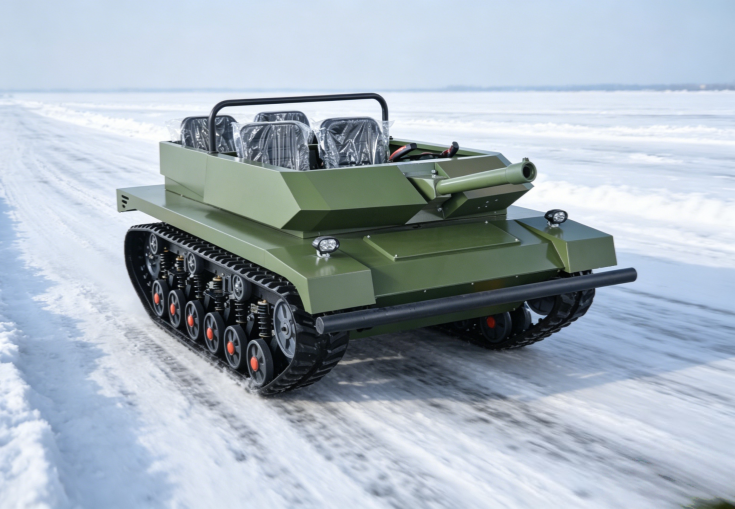

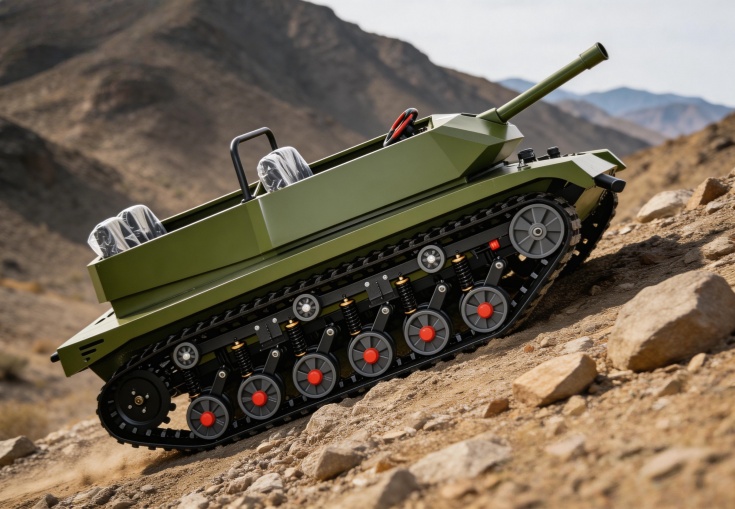

A track's large contact area provides stronger friction and reliable grip on slippery mud or icy roads, while traditional four-wheel vehicles easily skid and lose control.

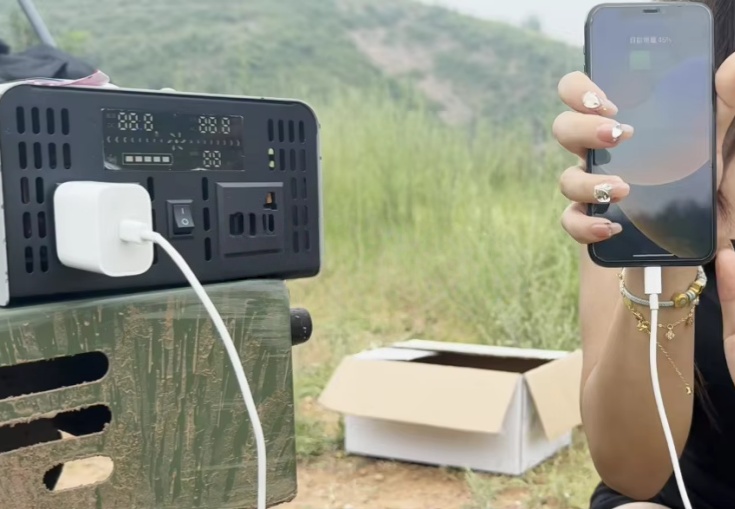

Our vehicles feature a 220V/6KW external power supply as a mobile power station. It powers lights, coolers, tools, medical devices, or home backup—replacing bulky generators.

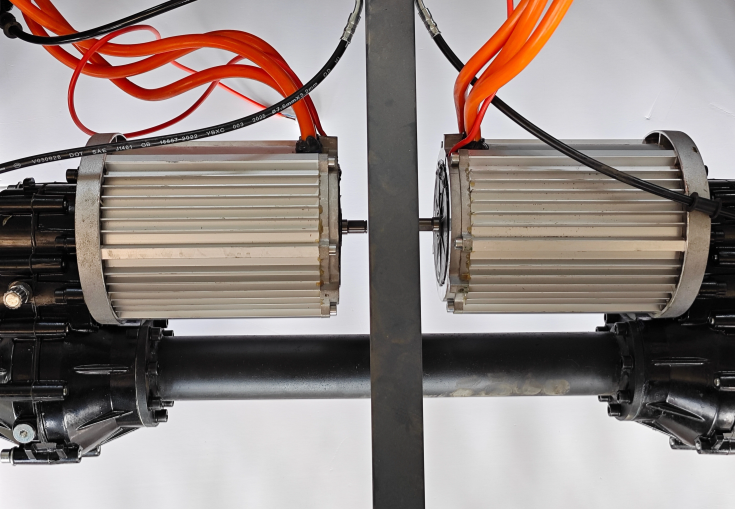

Rear-mounted dual drive, equipped with dual 850W motors, adopts rear-mounted dual drive dual electric dual drive axles, providing flexible power output and steering, and can achieve 360-degree U-turns on site.

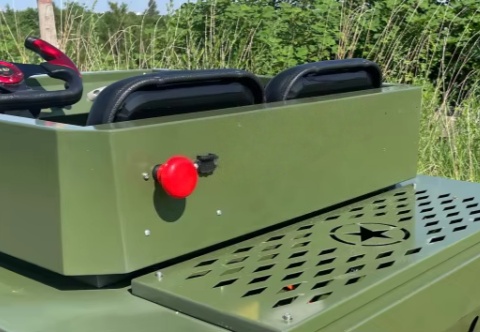

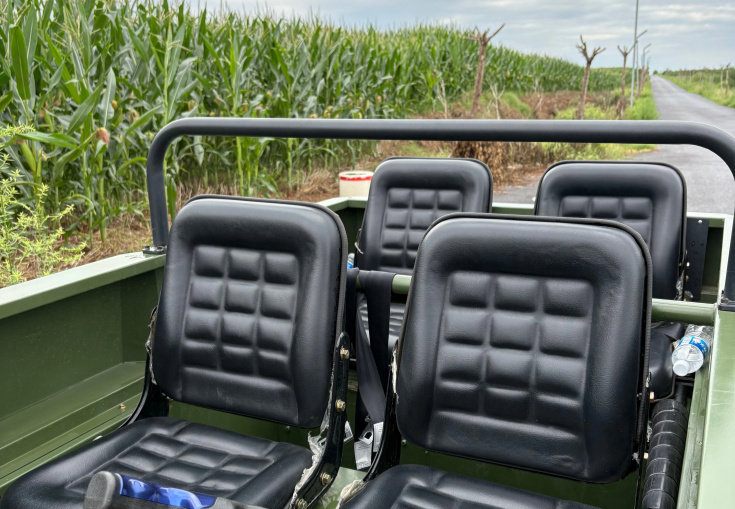

The independent double seats feature protective covering and a spacious, adjustable area, ideal for parent-child or two-person use.

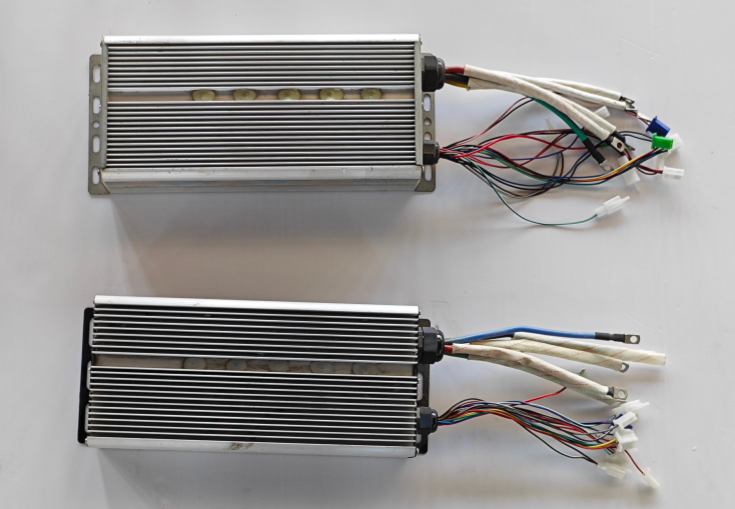

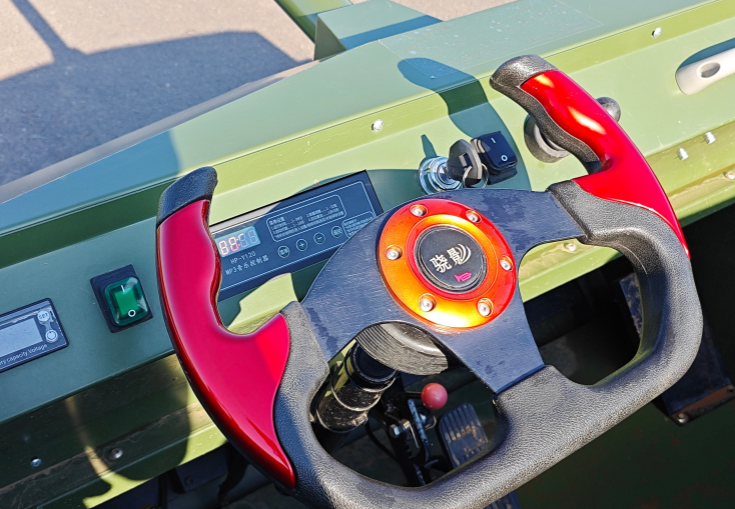

Integrated into the console, it uses electronic differential steering to regulate driving and steering, ensuring stable and flexible power allocation.

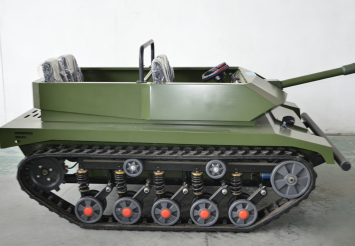

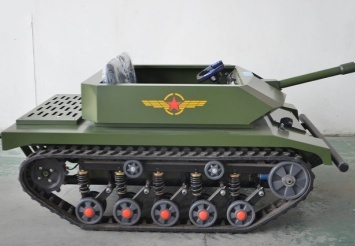

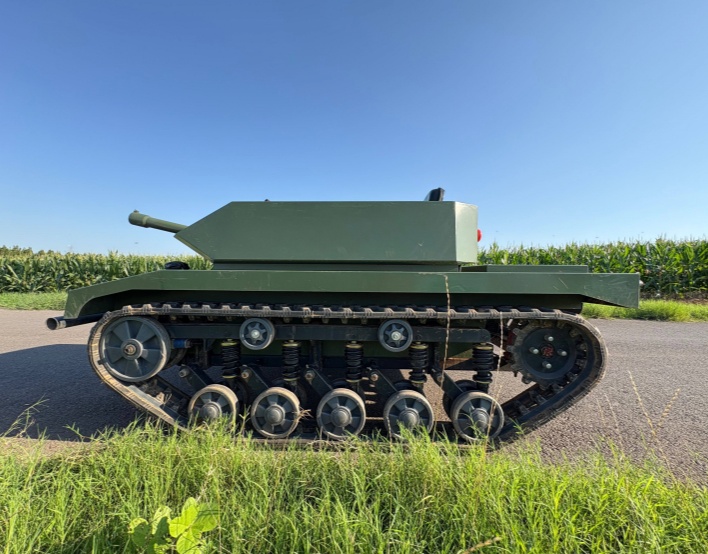

The track features spring-loaded, five-wheel independent suspension, enabling the rubber chassis to adapt to terrains and ensure a smooth ride.

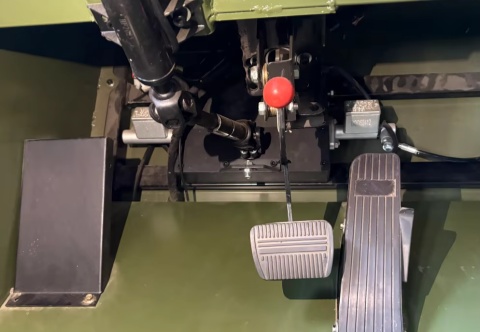

Its hydraulic disc brake system offers stable, sensitive performance with triple protection for emergency stopping. Safe for children or parent-child rides.
|
Pictures |
|
|
|
|
Model |
1ST |
2ST |
3ST |
|
L/W/H |
2930*1500*1240mm |
2320*1360*1050mm |
2080*1150*860mm |
|
Motor power |
4000W*2 |
1500W*2 |
850W*2 |
|
Battery voltage |
72V200Ah |
60V150Ah |
60V130Ah |
|
Driving speed |
15km/h |
15km/h |
12km/h |
|
Preparation quality |
700KG |
430KG |
300KG |
|
Driving property |
Rear-mounted dual drive |
||
|
Braking form |
Double-clamp disc brake |
||
|
Battery life |
6 to 8 hours |
||
|
Charging time |
6 to 8 hours |
||
|
Chassis structure |
Split body type,independent shock absorption,rear-mounted dual-dual-electric dual-drive drive axleelectric dual-drive drive axle. |
||
|
Applicable scenarios |
Amusement parks, ski resorts, parent-child playgrounds,farms,theme parks, beaches and other all-terrain venues. |
||
Ideal for tank-themed parks: rubber track protects surfaces, system monitors vehicles (location, battery, faults), boosting safety and efficiency.
