TUE-2C Electric All Terrain Tracked Vehicle

TUE-2C Electric All Terrain Tracked Vehicle

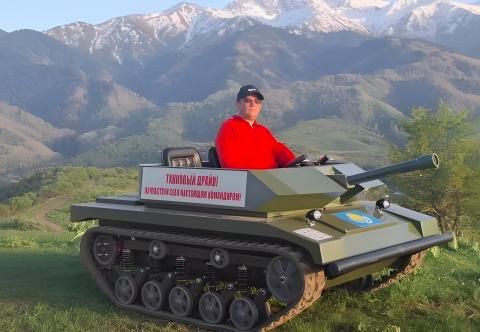

An all-terrain electric rubber crawler tank vehicle designed for amusement park operations.

Dimensions: 2930 × 1500 × 1240mm

Motor power: 2 × (0.85–4) kW

Maximum speed: 12–15 km/h

Send Message Whatsapp

Product Details

This electric rubber crawler chassis works on grass, sand, and mud. Easy to operate, it’s ideal for amusement parks. Its built-in system monitors real-time location, battery, and status.Wild terrain becomes your amusement park, deployable anywhere without tracks or setup.

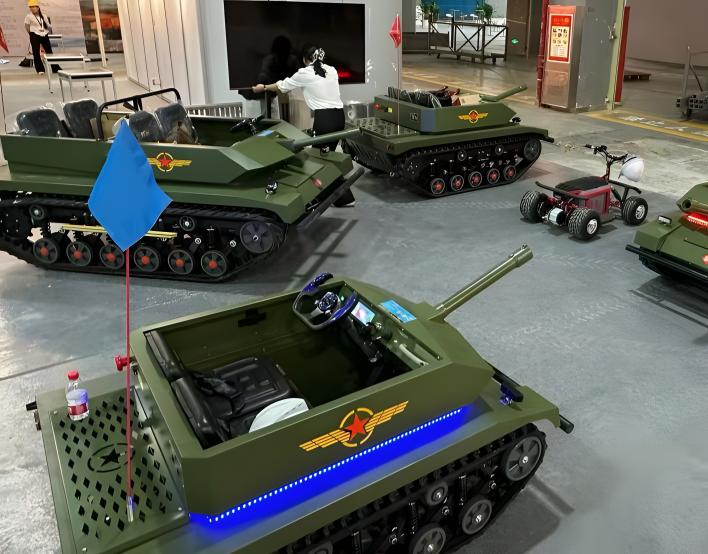

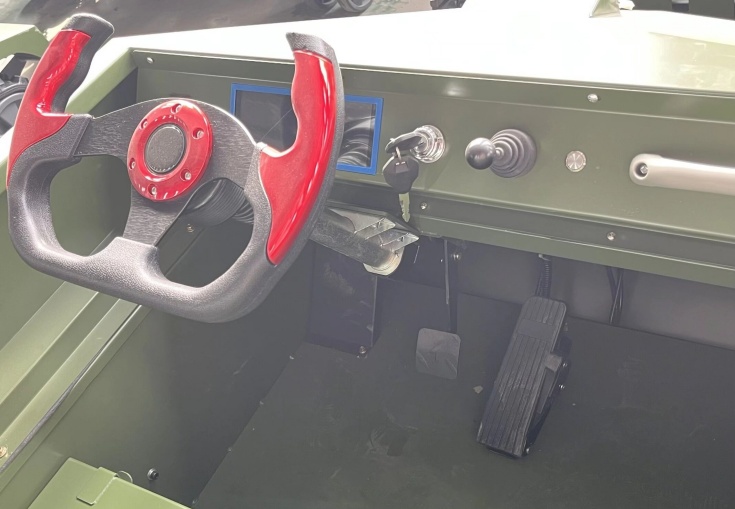

Operation console

It features steering wheel, electronic differential steering, center console gear lever (adjustable volume/run time), speed range, headlight, and sound cannon controls.

Grip and anti-slip performance

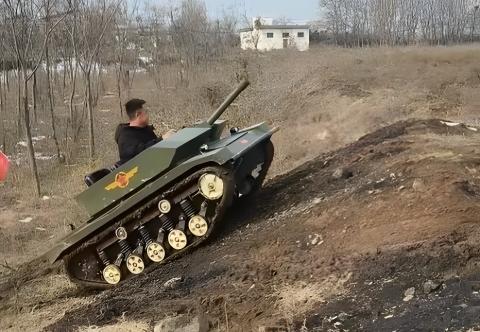

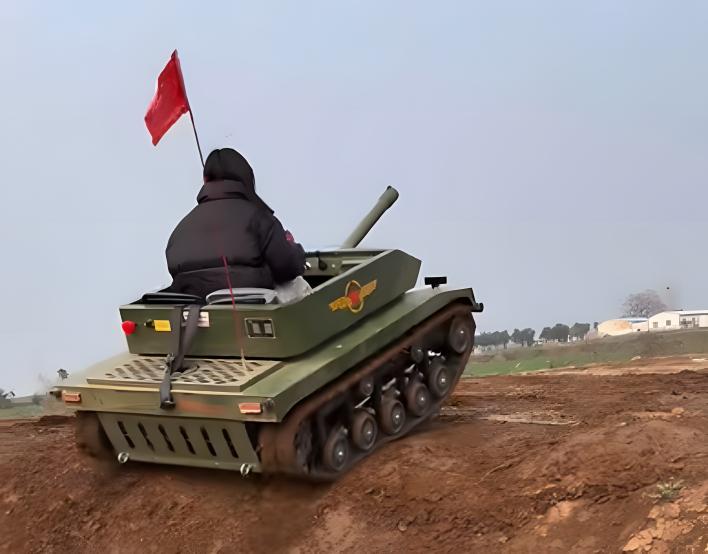

A track's large contact area provides stronger friction and reliable grip on slippery mud or icy roads, while traditional four-wheel vehicles easily skid and lose control.

External power supply for vehicles

Our vehicles feature a 220V/6KW external power supply as a mobile power station. It powers lights, coolers, tools, medical devices, or home backup—replacing bulky generators.

Motor, rear axle

Rear-mounted dual drive, equipped with dual 850W motors, adopts rear-mounted dual drive dual electric dual drive axles, providing flexible power output and steering, and can achieve 360-degree U-turns on site.

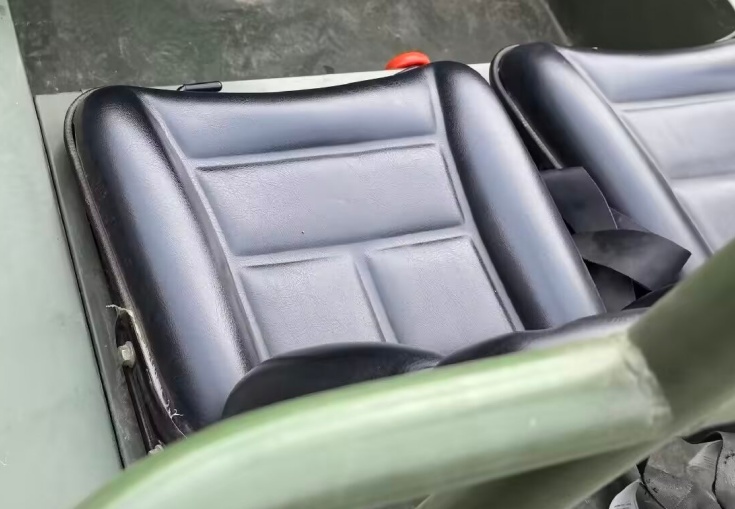

Seat

The independent double seats feature protective covering and a spacious, adjustable area, ideal for parent-child or two-person use.

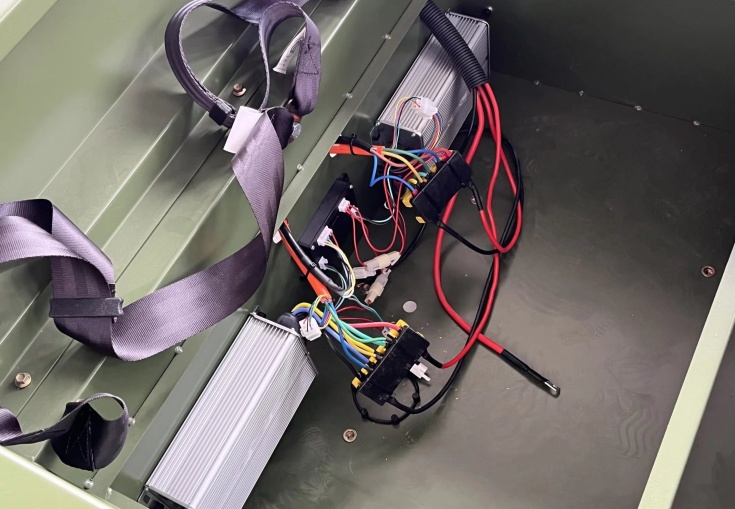

Controller

Integrated into the console, it uses electronic differential steering to regulate driving and steering, ensuring stable and flexible power allocation.

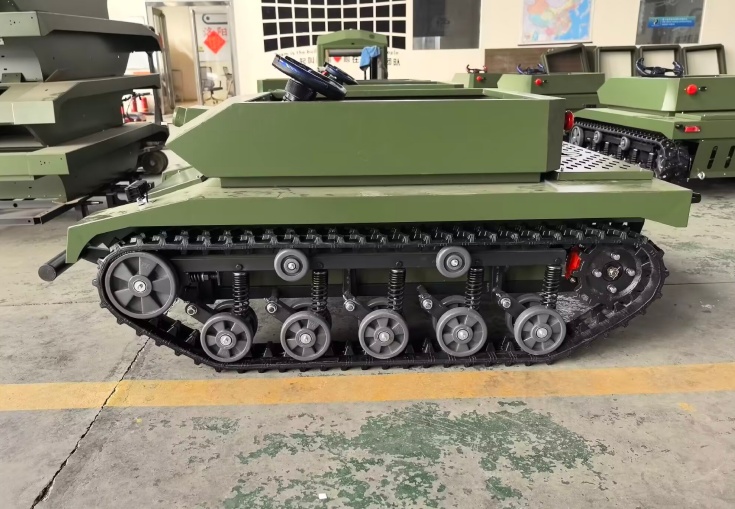

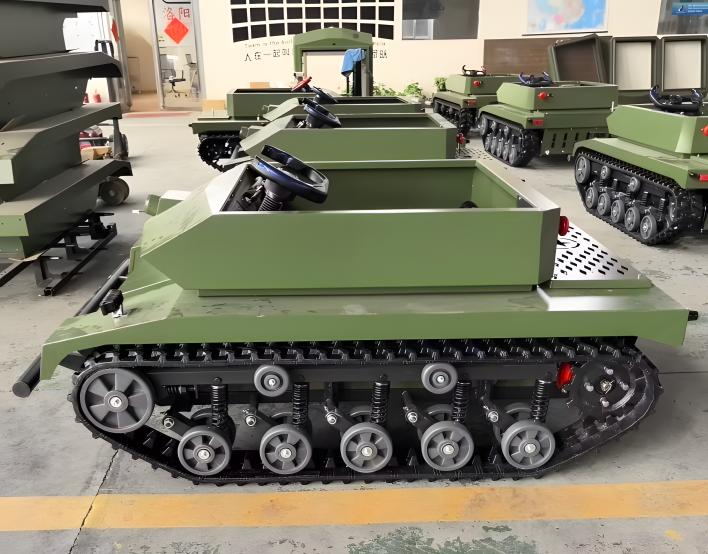

Suspension shock absorption

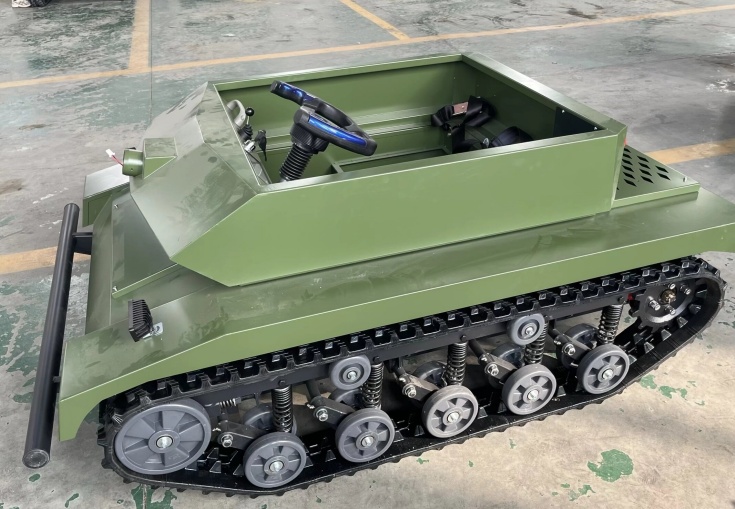

The track features spring-loaded, five-wheel independent suspension, enabling the rubber chassis to adapt to terrains and ensure a smooth ride.

Reliable braking

Its hydraulic disc brake system offers stable, sensitive performance with triple protection for emergency stopping. Safe for children or parent-child rides.

Parameters

Pictures
Model	1ST	2ST	3ST
L/W/H	293015001240mm	232013601050mm	20801150860mm
Motor power	4000W*2	1500W*2	850W*2
Battery voltage	72V200Ah	60V150Ah	60V130Ah
Driving speed	15km/h	15km/h	12km/h
Preparation quality	700KG	430KG	300KG
Driving property	Rear-mounted dual drive
Braking form	Double-clamp disc brake
Battery life	6 to 8 hours
Charging time	6 to 8 hours
Chassis structure	Split body type,independent shock absorption,rear-mounted dual-dual-electric dual-drive drive axleelectric dual-drive drive axle.

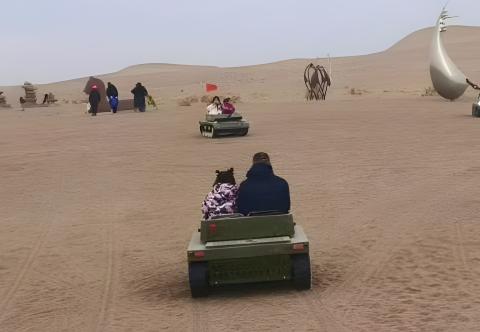

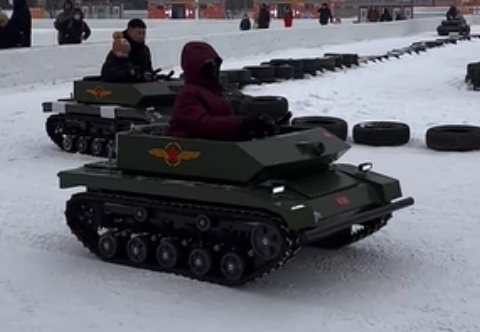

Applicable scenarios	Amusement parks, ski resorts, parent-child playgrounds,farms,theme parks, beaches and other all-terrain venues.

Application

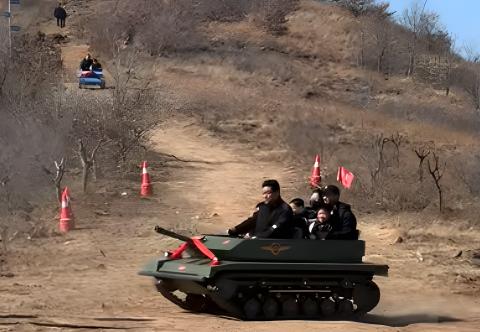

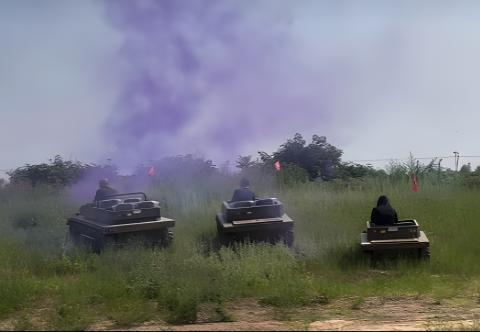

Ideal for tank-themed parks: rubber track protects surfaces, system monitors vehicles (location, battery, faults), boosting safety and efficiency.
