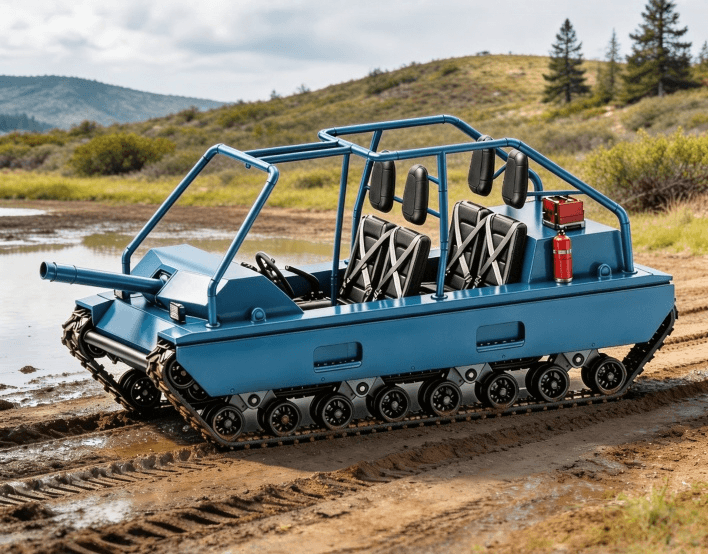

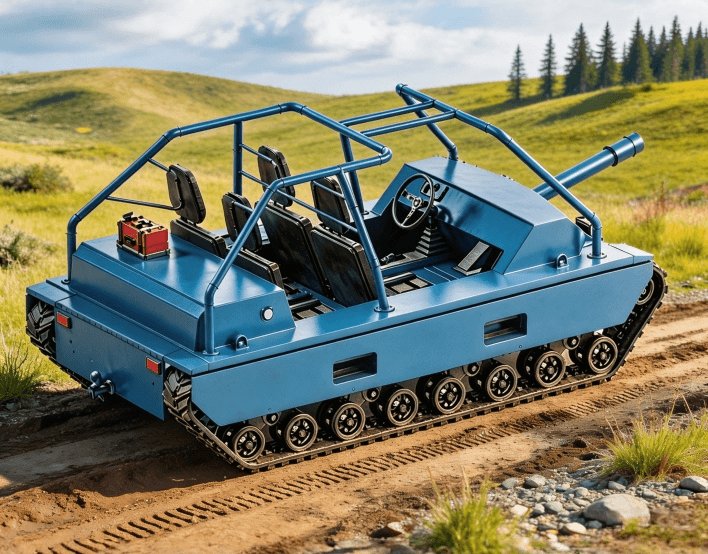

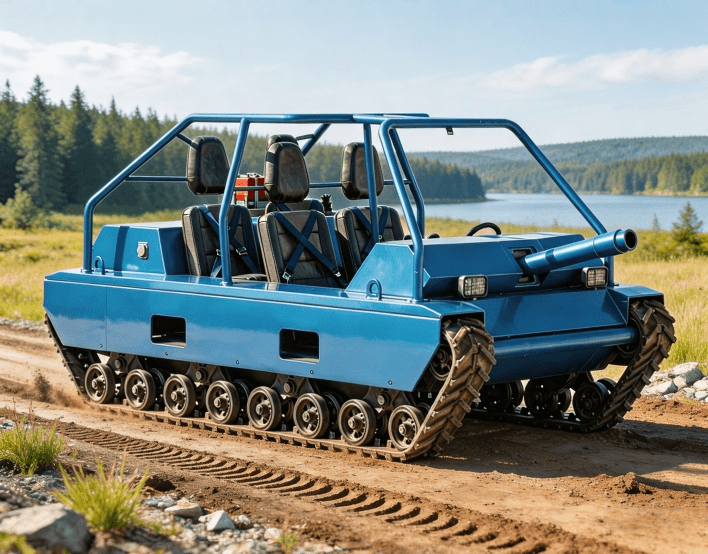

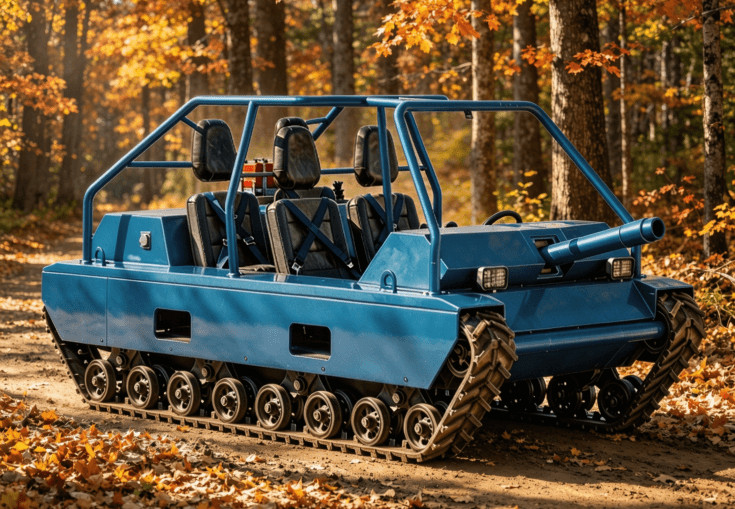

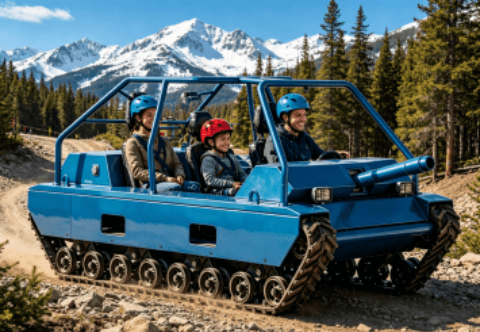

TUE-4 Four-Seater Tracked Vehicle

Heavy-duty four-person entertainment tank chassis, ideal for outdoor battlefields, theme parks, parent-child education, and team activities.

Product Dimensions： 2900 × 1530 × 1380 mm

Motor Power： 2 × (4 kW – 8 kW)

Track Width： 230 mm

Send Message Whatsapp

Product Details

Description

A heavy-duty, high-torque four-person chassis, offering spacious room and strong power, ideal for family groups and team experiences.

Features

Safety System

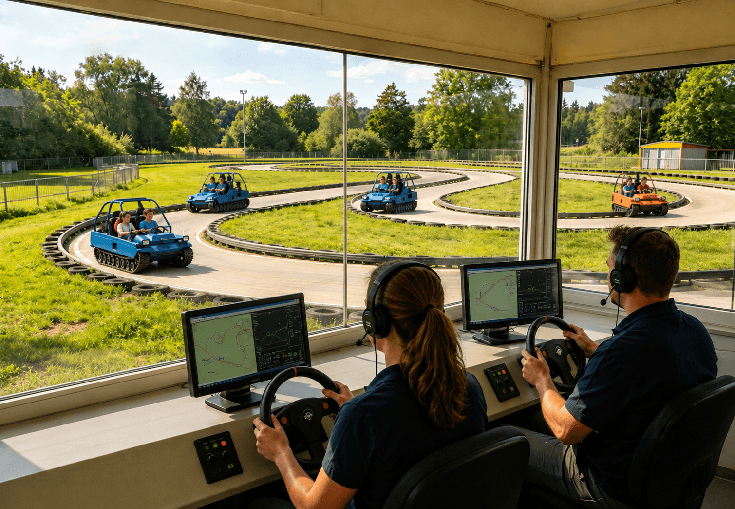

Guardian Monitoring System: The guardian can remotely monitor and control the vehicle in real-time, ensuring safety and operational flexibility.
Blind Spot Assistance: Front-mounted camera for safer navigation and blind spot avoidance.

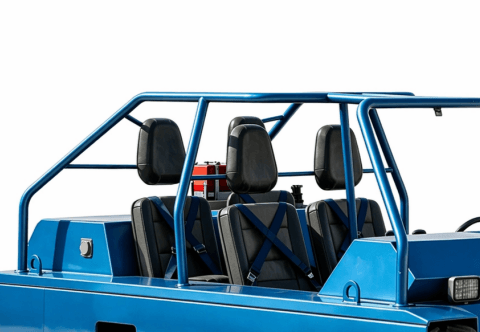

Reinforced Roll Cage: Enhanced impact resistance for added protection.
Racing-Grade 4-Point Harness: Ensures the safety of all passengers in every seat.
Easy Access: Side step for quick and convenient entry/exit.

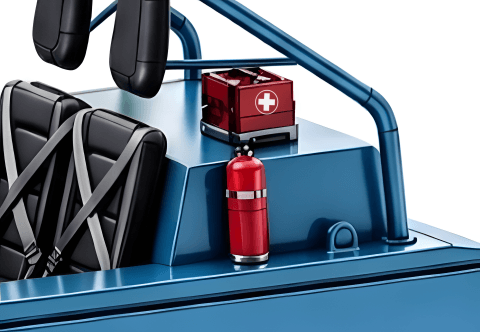

Emergency Gear: Optional first aid kit and fire extinguisher for enhanced emergency preparedness.

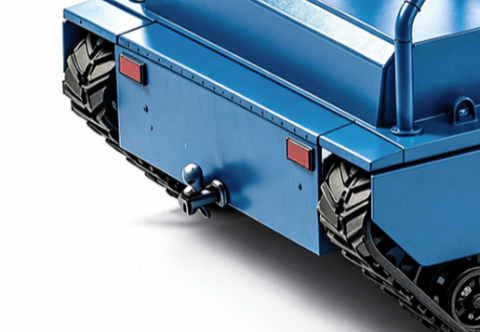

Heavy-Duty Tow Points: Ideal for transporting cargo or equipment.

Power & Mobility

Dual 8kW Motors: 1200Nm peak torque, easily climbs a 30° slope even with 4 passengers.
Zero-Radius Turning: 360° rotation, providing exceptional maneuverability.
Electronic Differential: Smooth and responsive steering under heavy loads.

Comfort & Convenience

Adjustable Steering & Pedals: Customizable settings to suit drivers of all sizes.
Adjustable Seats: Accommodates a wide range of driver heights.
All-Weather Protection: Optional rain cover ensures comfort in any weather condition.

Modular Export Design

Quick assembly and disassembly for easy transport and export.

Optional Upgrades

Immersive Sound Effects: Engine roars, cannon fire, and track crunching sounds for an enhanced experience.

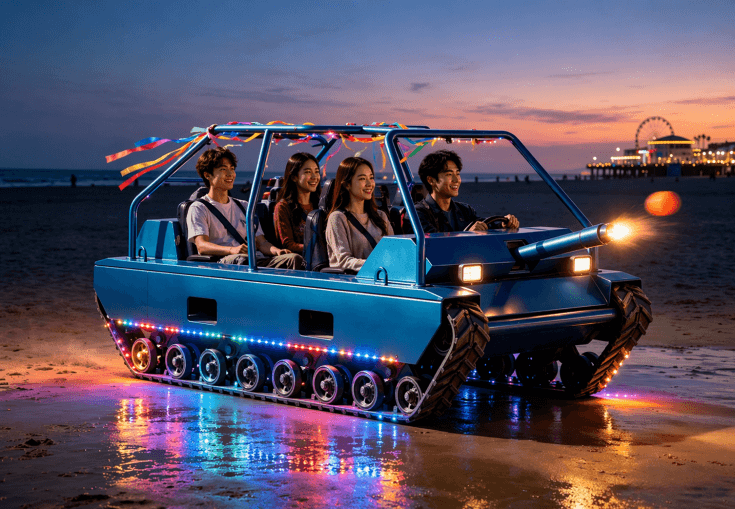

Ambient Light Strips: Underbody and roof lighting strips for a striking nighttime effect.
Interactive Launcher: Soft projectiles with a 20m range for a fun and safe experience.
Enhanced Emergency Readiness: Optional first aid kit and fire extinguisher for added safety.

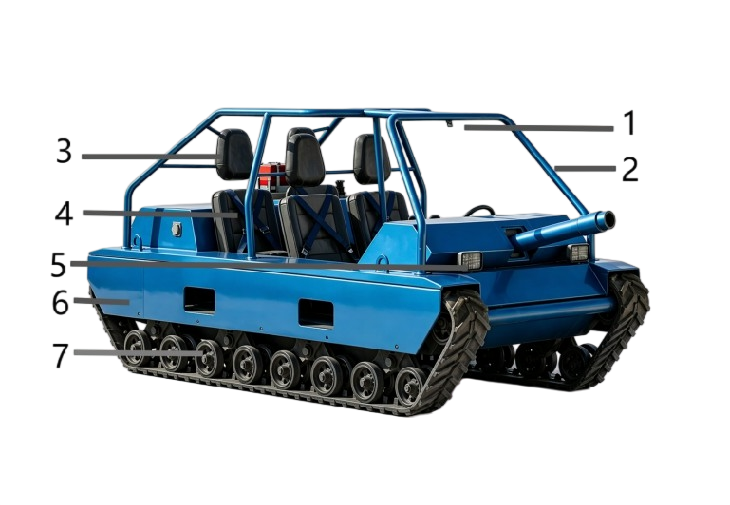

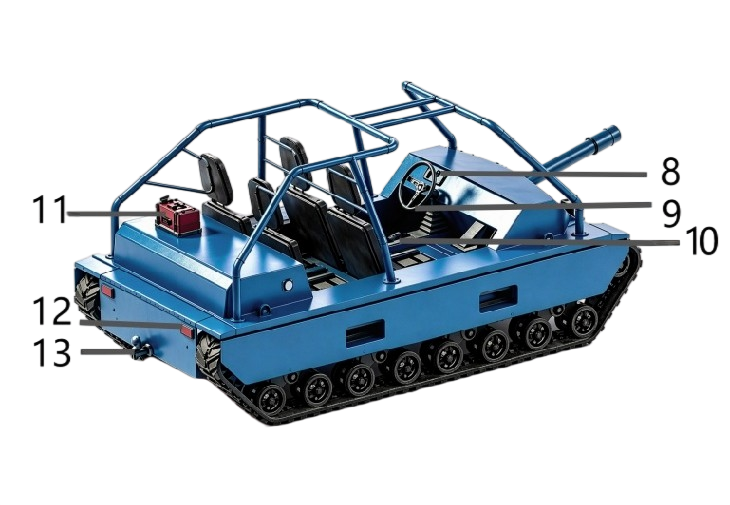

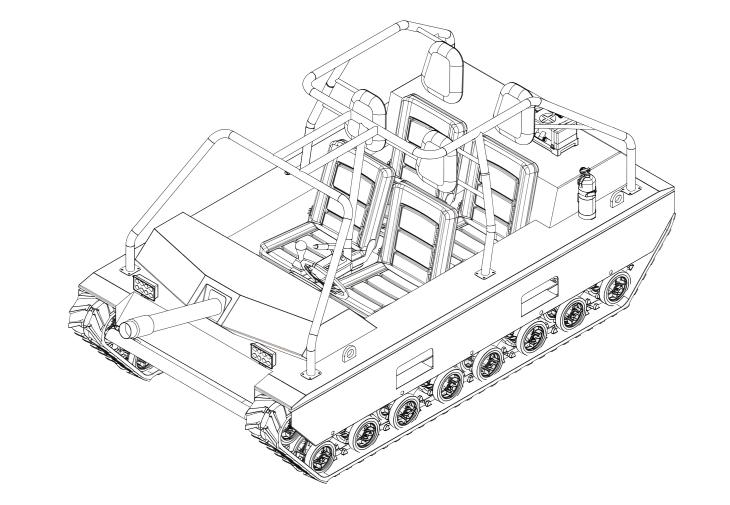

Product Structure Diagram

1. Camera

2. Roll cage

3. Headrest

4. Seat

5. Headlight

6. Overhead panels

7. Tracked chassis assembly

8. Display screen

9. Steering wheel

10. Handbrake

11. First aid kit

12. Taillight

13. Tow hook

Parameters

Name	Parameters	Name	Parameters
Product Dimensions	290015301380mm (excluding gun barrel and rear tow hook)	Track Parameters	Width 230mm 72 sections
Motor Power	2x(4KW-8KW)	Motor Rated Speed	3000-4500RPM
Minimum Ground Clearance	200mm	Maximum Speed	25km/h
Battery Compartment Dimensions	700450220mm	Design Gross Weight	350kg (excluding battery)
Maximum Battery Dimensions	680420200mm	Maximum Climbing Angle	30
Reduction Ratio	1:7.5-20	Output Torque	200-600NM
Load Capacity	400Kg	Protection Rating	IP65

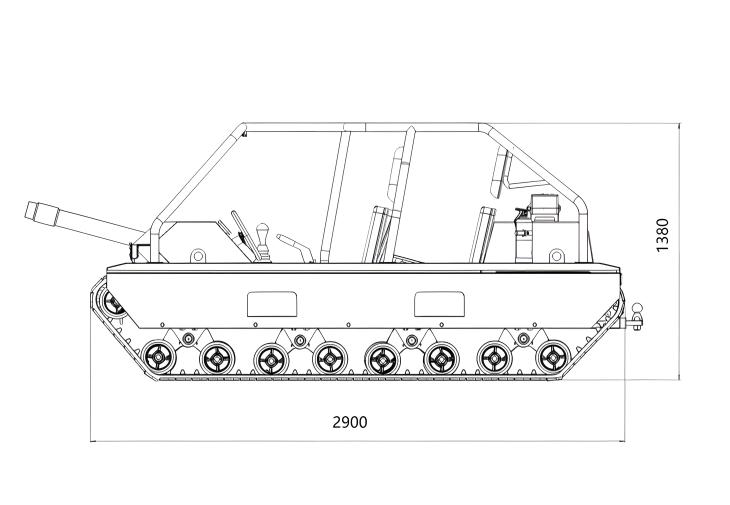

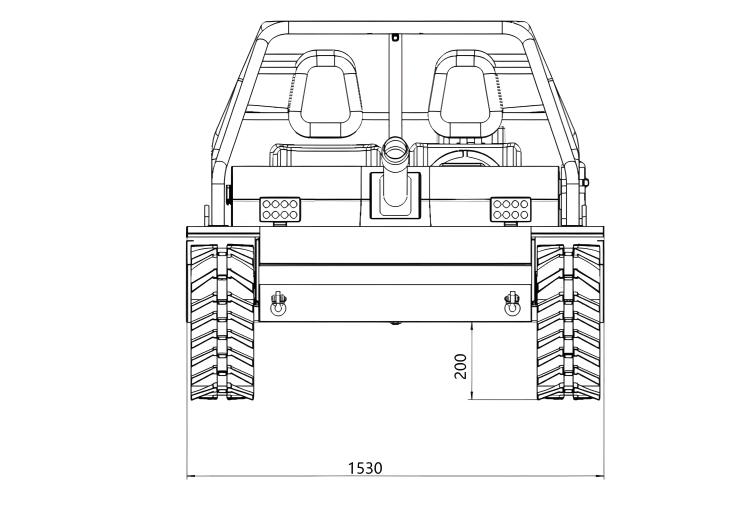

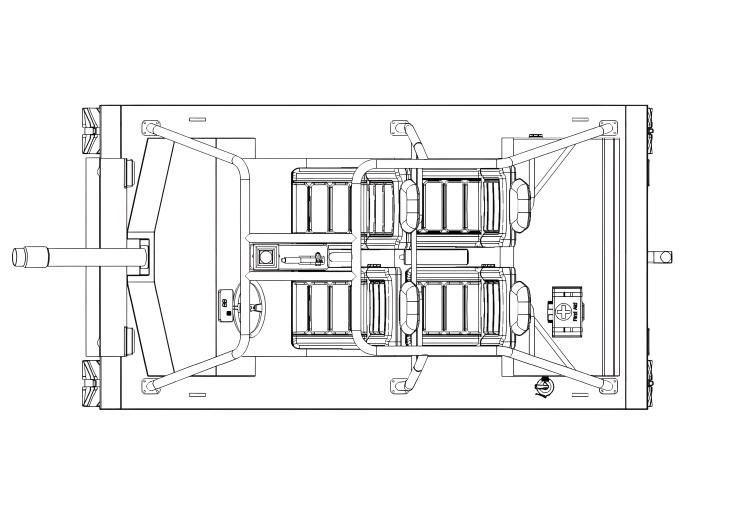

Product Dimensions

Applicable Scenarios

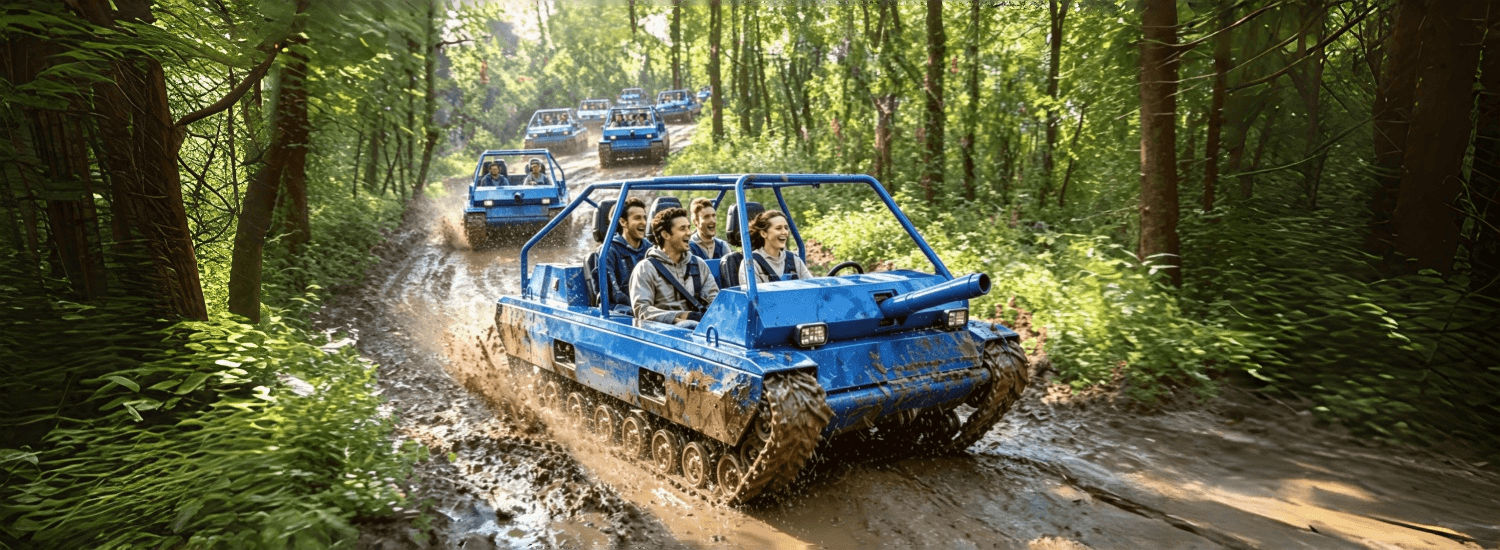

Outdoor real-life CS arenas / Laser combat bases

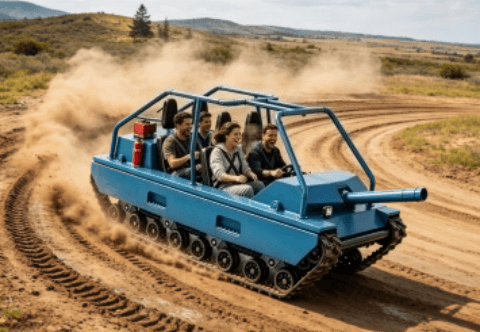

Mountain theme parks / Off-road camps

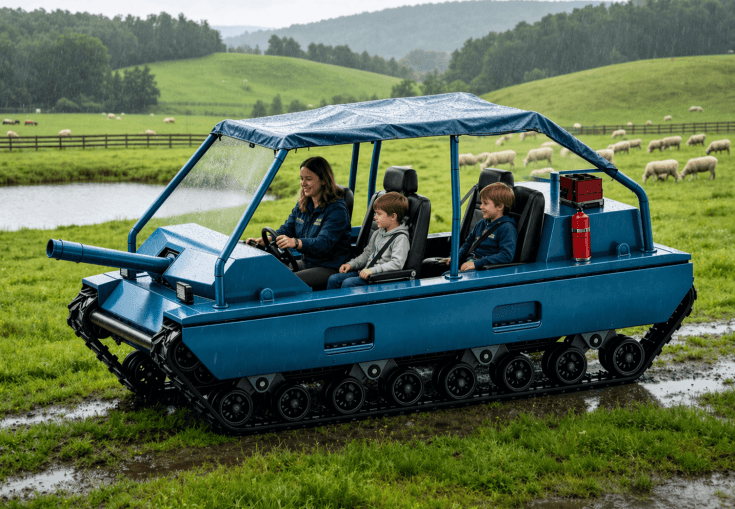

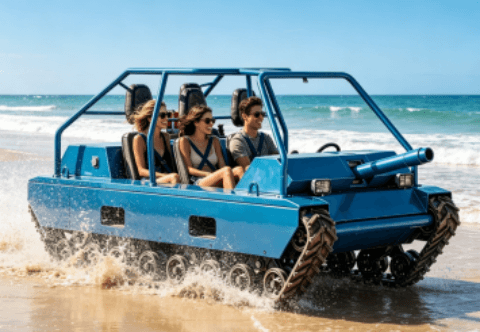

Farms / Orchards / Beaches / Snowfields

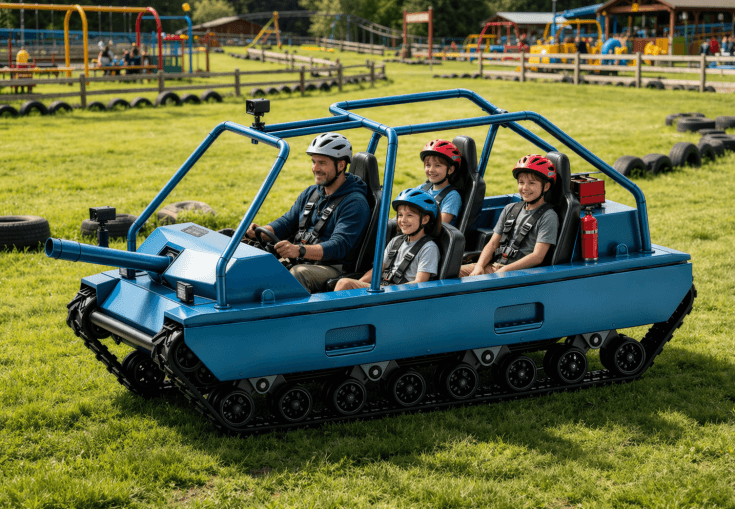

Family education / Team building / Commercial amusement projects
