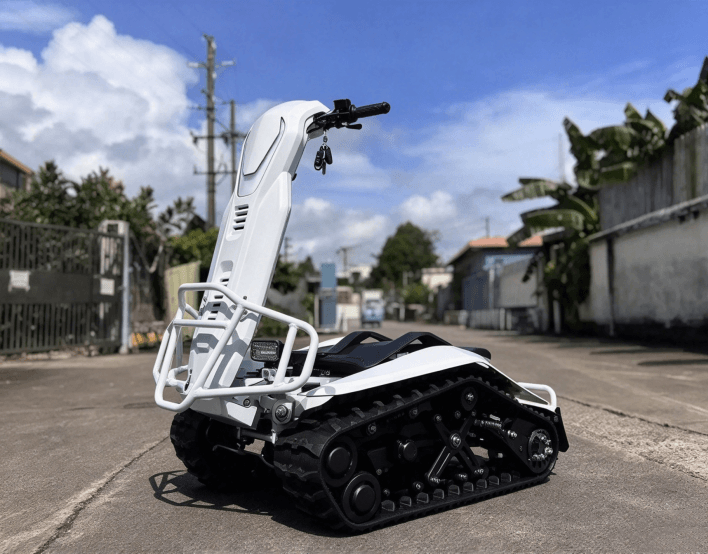

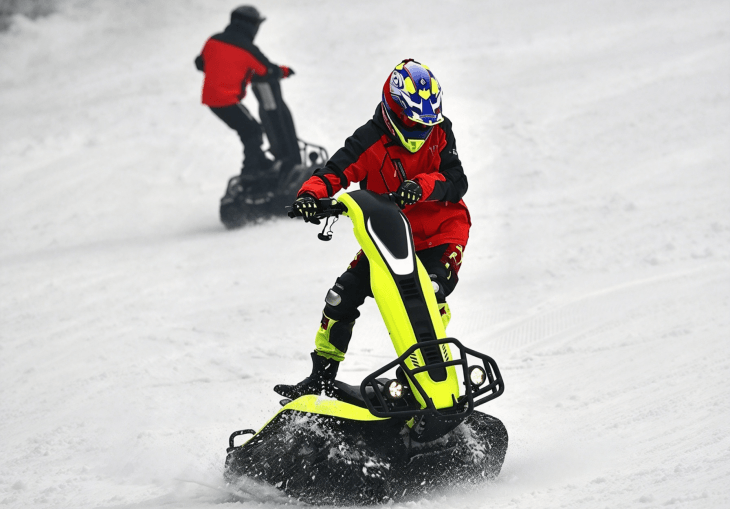

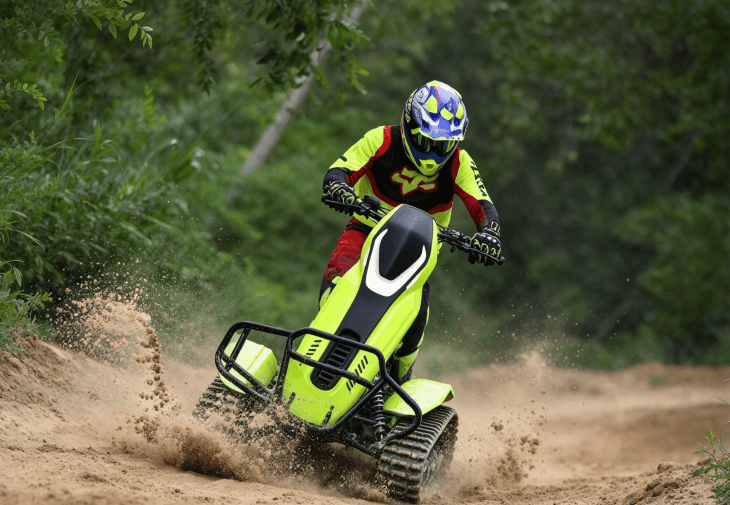

ESS-T2 tracked electric recreation vehicle, all-season all-terrain adventure vehicle. Tackle snow, sand, swamp and gravel. Ideal for resorts, adventure parks and outdoor leisure experience projects.
ESS-T2 tracked outdoor recreation vehicle is an all-terrain Electric Recreation Vehicle for outdoor adventure and leisure. Dual motors deliver strong power. Its track system works on snow, sand and swamp. Zero-turn capability makes it perfect for commercial experience venues.
Key Advantages
· Heavy-duty rubber tracks for all-season terrain
· Dual permanent magnet synchronous motors for powerful off-road performance
· Foldable handle for simple storage and transport
High Power Performance
Raw torque for highly challenging off-road adventures
- Dual permanent magnet synchronous motors, with peak 20kW high-power output

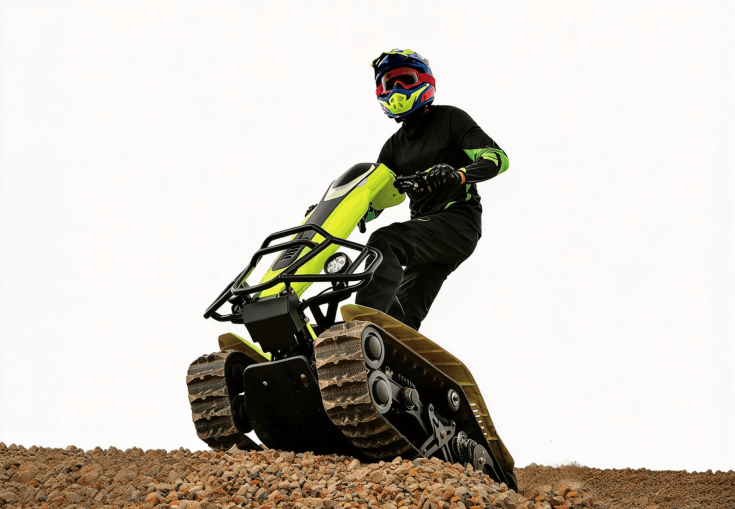

- Track chain drive structure, high torque output, maximum climbing angle 60°
- Forward/reverse dual-speed control, adapting to different levels of adventure intensity
Range Capability
Solid endurance for long-time outdoor use

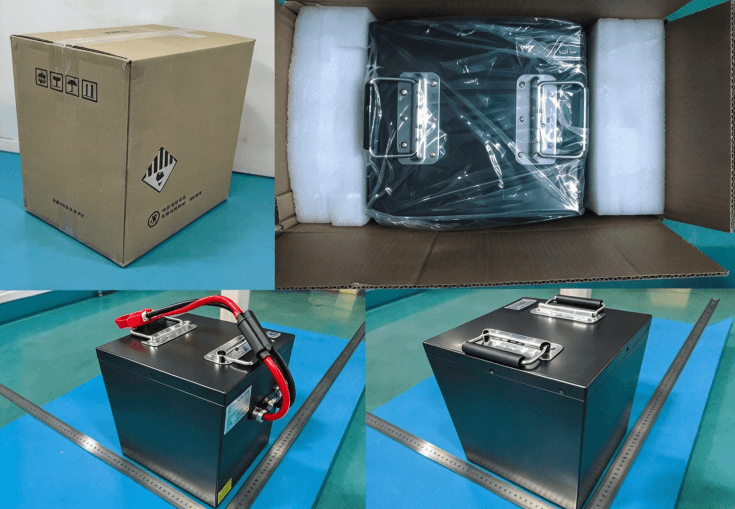

- 72V 45Ah large-capacity power lithium battery
- Single-charge range ≥30 km, supporting continuous on-site experience operations
- Fast-charging design, fully charged in 3 hours, improving commercial operation turnover efficiency
Handling & Stability
Stable control even on rough and slippery terrain
- Integrated fiber-reinforced rubber track for strong traction
- 6 adjustable hydraulic shock absorbers keep the ride stable on bumpy roads
- Pivot turning design for flexible maneuvering in tight spaces

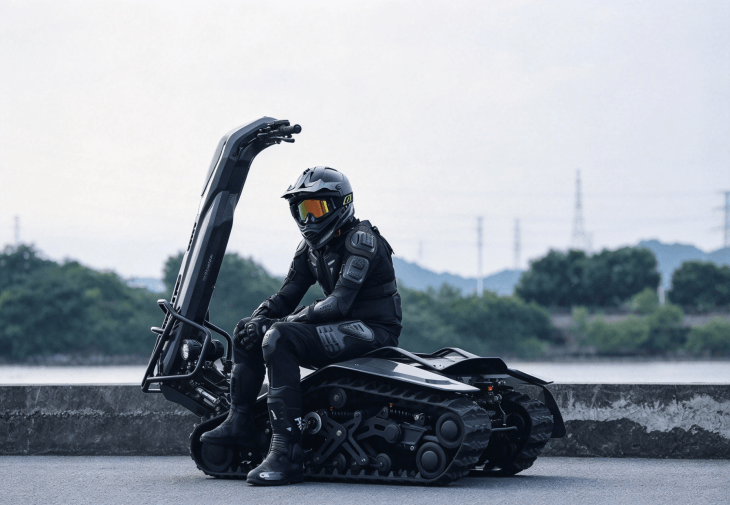

Easy to store and transport
-Handlebars can fold downward, greatly reducing overall height
-Compact footprint after folding, easy to load and transport
-Lightweight structure, one person can complete transport and deployment
- Dedicated dual-motor controller
- Portable charger with AC220V household input
-Electronic forward/reverse dual-direction control
- Upright ergonomic handlebars

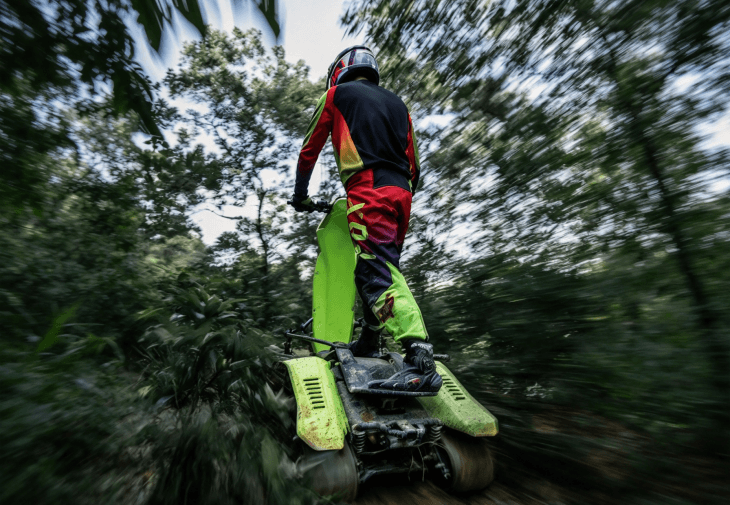

- Open standing riding platform
- Multi-level hydraulic shock absorption, cushioning bumps and impacts

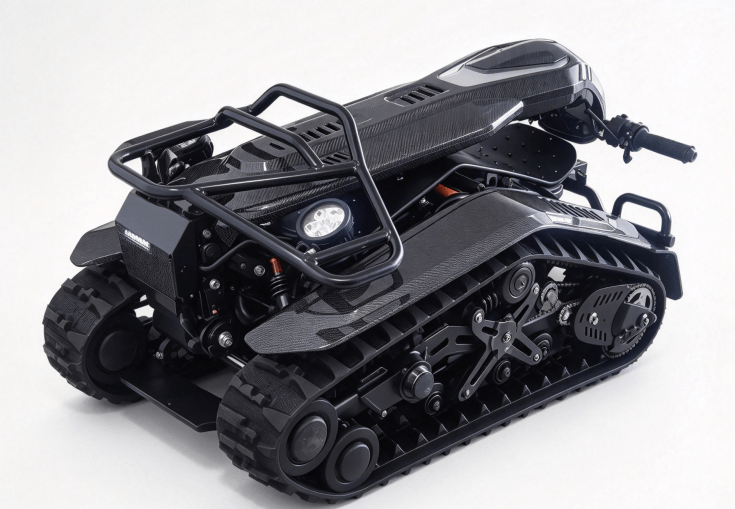

- High-strength welded steel plate frame, with electrophoretic coating + aluminum spraying process

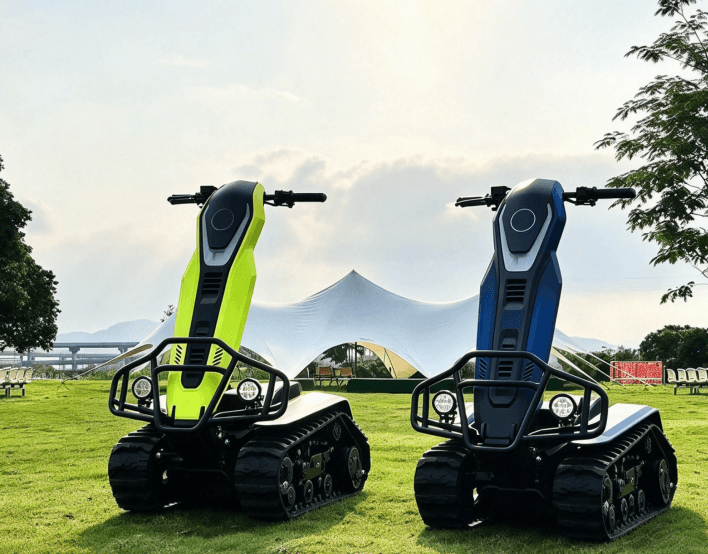

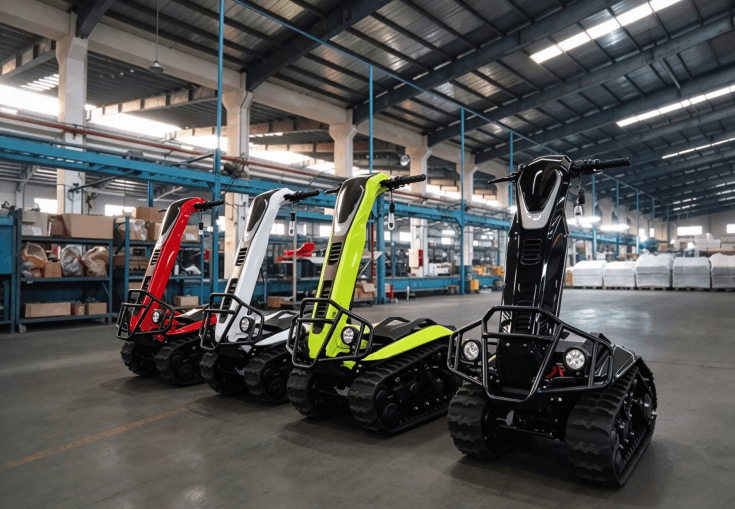

- Multiple color shell options: fluorescent green, flame red, matte black, carbon fiber texture

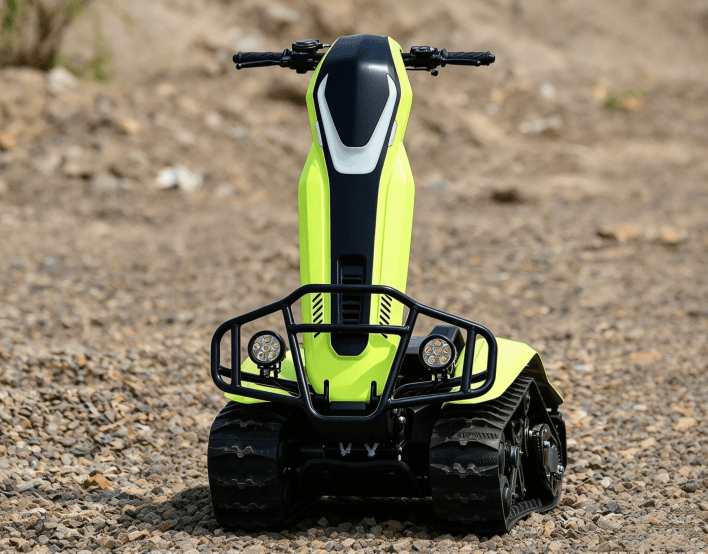

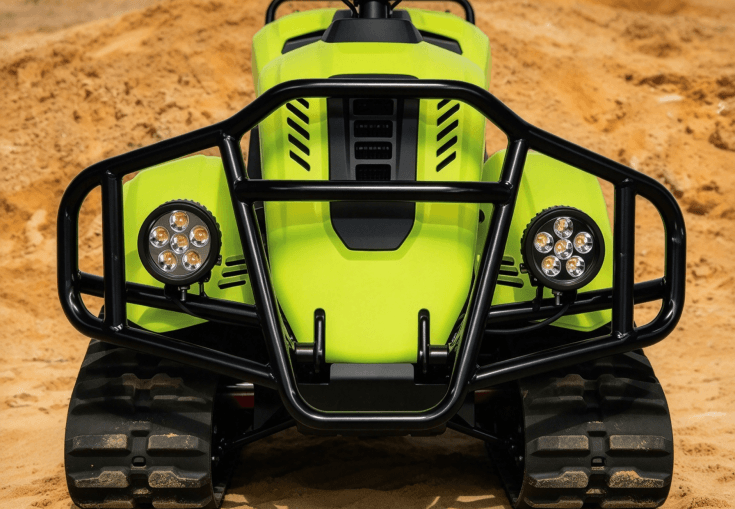

- Front protective bumper + headlight
|
Item |
Specification |
|
Model |
ETV-TANK ET6 |
|
Dimension (Handle Up) LWH |
1265×700×1370 mm |
|
Dimension (Handle Down) LWH |
1265×700×730 mm |
|
Packing Size LWH |
1300×760×760 mm |
|
Max Forward Speed |
35–38 km/h |
|
Max Reverse Speed |
3–5 km/h |
|
Rated / Max Power |
— / 20.0 kW |
|
Max Torque |
106 N·m |
|
Motor Type |
Dual Permanent Magnet Synchronous Motor |
|
Drive System |
Dual rear wheel chain & crawler drive |
|
Battery |
72V 45Ah Power Lithium Battery |
|
Range (@15km/h, 20~25℃) |
≥30 km |
|
Charging Time |
≤3 hrs |
|
Net Weight |
162 kg |
|
Packing Weight |
185 kg |
|
Max Loading (Single Person) |
≤200 kg |
|
Track |
Integrated fiber reinforced rubber track |
|
Suspension |
Christie suspension with 6 adjustable hydraulic shock absorbers |
|
Min Turning Radius |
Turn in place (Zero turn) |
|
Climbing Ability |
Gradient ≥60° |
|
Applicable Terrain |
All Terrains / All Season |
|
Charging Ambient Temp |
0~45℃ |
|
Discharge Ambient Temp |
-20~60℃ |
