Compact 10-inch folding electric trike with 350W motor and lithium battery, designed for outdoor leisure, travel and easy storage.
A compact folding electric vehicle designed for outdoor leisure, travel, recreational riding, and flexible storage. It features a lightweight aluminum alloy body, 10-inch wheels, a 350W brushless motor, and flexible seat configurations.
Two range options are available: 30–45 km and 40–50 km, with two-seat, single-seat, and detachable parent-child/single-seat configurations.

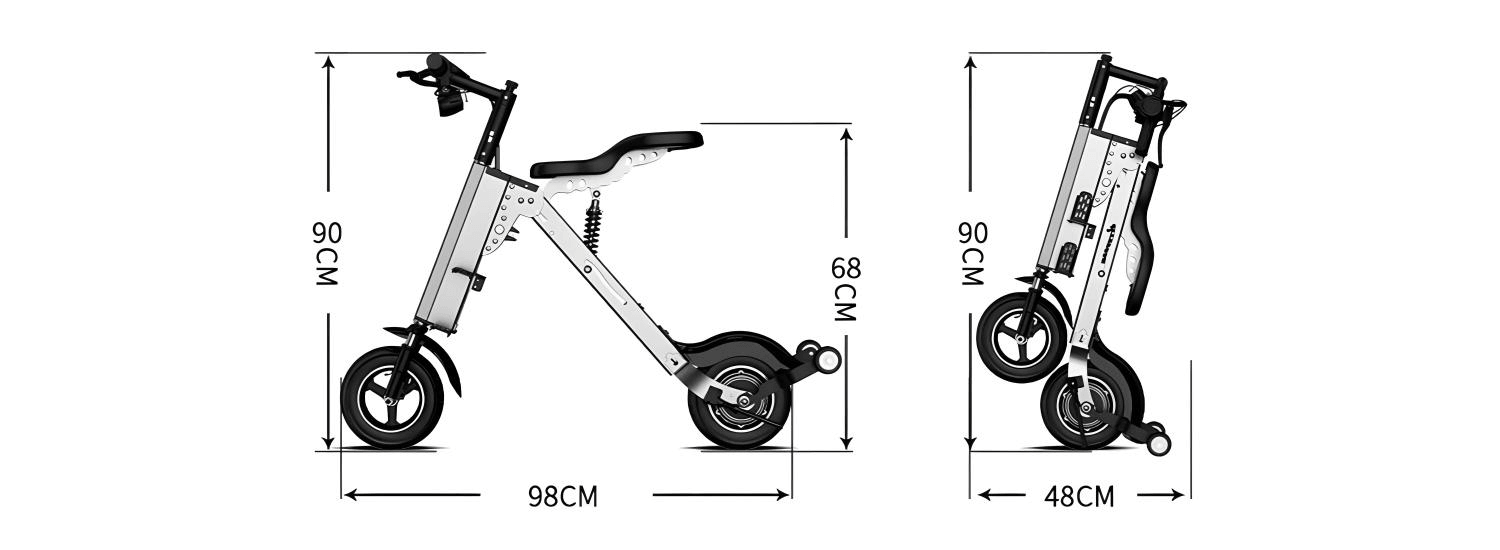

Smart Folding Structure for Easy Storage
Innovative rotating front section and dual-fold mechanism allow quick folding in seconds. The compact design makes transportation and storage more convenient.
Product Details
Quick folding structure
Compact body design

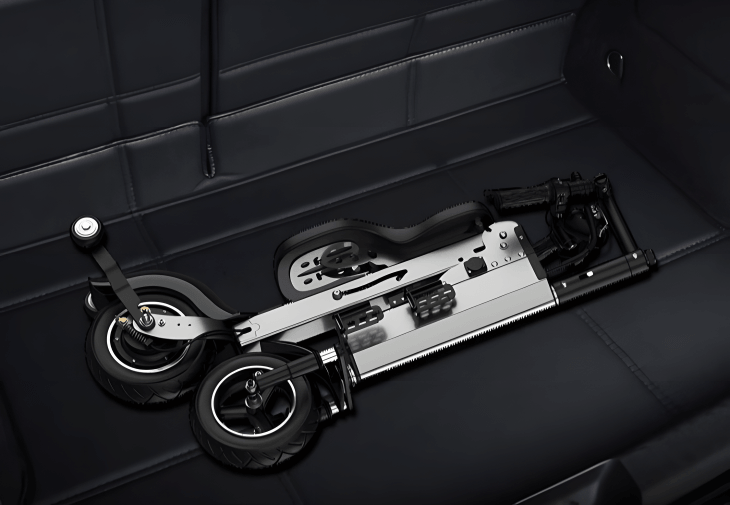

Fits in vehicle trunks and storage spaces
Approx. 16–17kg lightweight frame

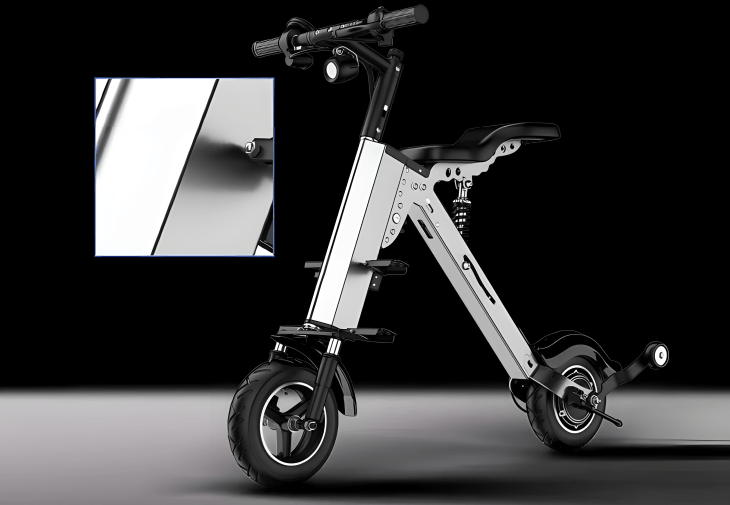

Lightweight Aluminum Alloy Frame
Built with a lightweight aluminum alloy structure, providing high strength, corrosion resistance, and long-term durability.
Product Details
High-strength aluminum alloy frame
Lightweight construction
Stable riding structure
Oxidation-resistant surface treatment

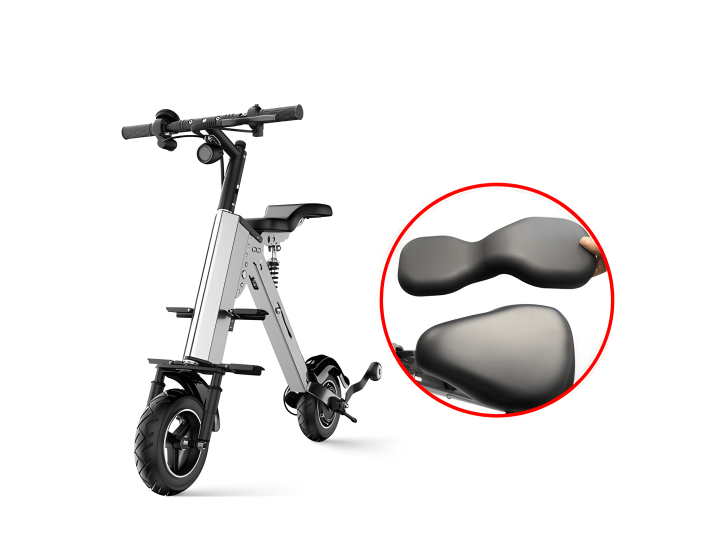

Multiple Seat Configurations
Available with different seat configurations to meet various outdoor leisure and travel needs.
Two-seat configuration
Single-seat configuration
Removable parent-child seat option
Flexible configuration replacement

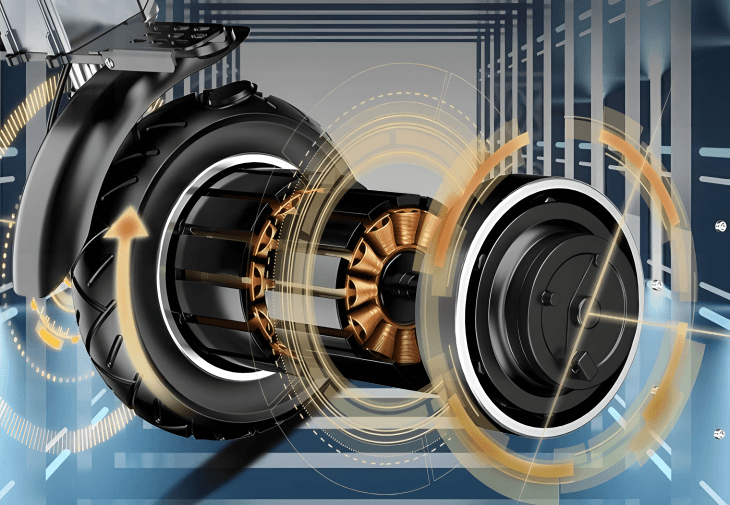

Efficient Brushless Motor System
Equipped with a 350W brushless motor, delivering efficient power output and smooth riding performance.
350W brushless motor
Max speed: 20–25km/h
Torque: 28N·m

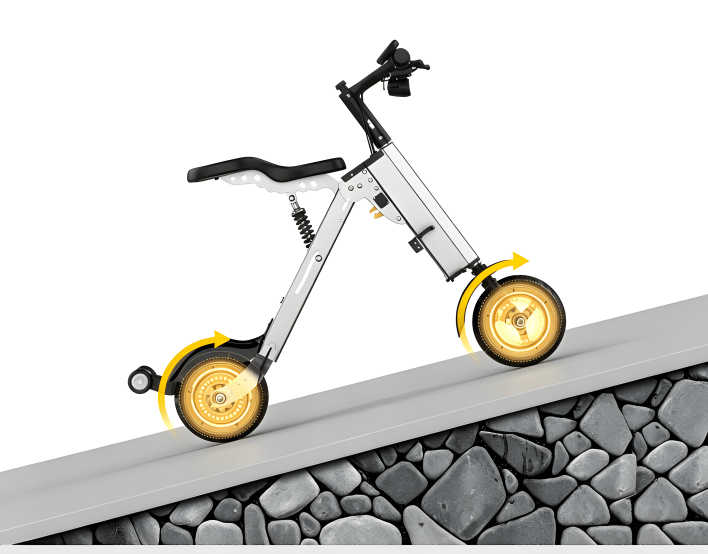

Climbing capability up to 20°

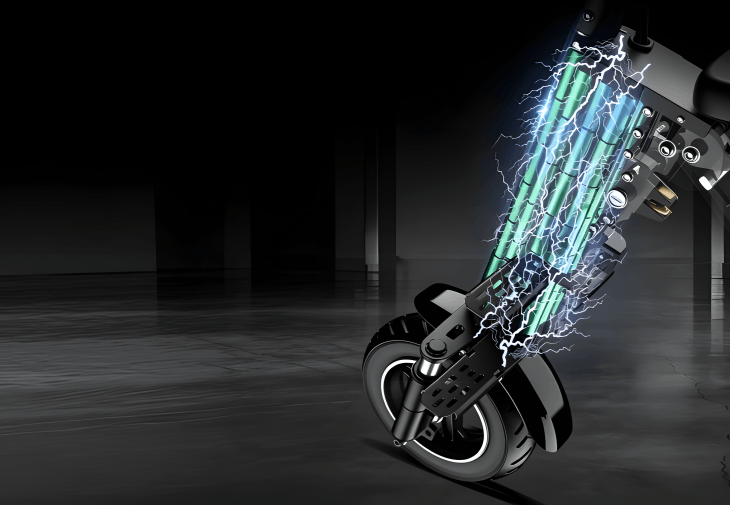

Long-Range Lithium Battery System
Powered by a high-quality lithium battery system designed for stable performance and extended riding distance.
30–45km / 40–50km range options
3–5 hours charging time
Automotive-grade lithium cells
Long service life design
Intelligent Battery Management System (BMS)
The integrated BMS improves battery safety and reliability through intelligent monitoring and protection.
Overcharge protection ;Over-discharge protection
Over-current protection ;Short-circuit protection
Temperature monitoring ;Smart self-check function

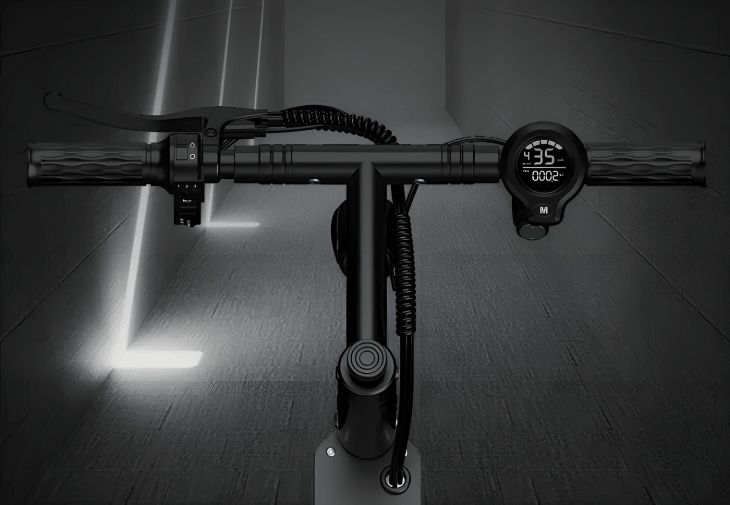

Three-Speed Riding Modes
Three riding modes allow users to adjust speed according to different environments.
Learning mode: 6km/h
Standard mode: 12km/h
Sport mode: 20km/h
Easy speed switching

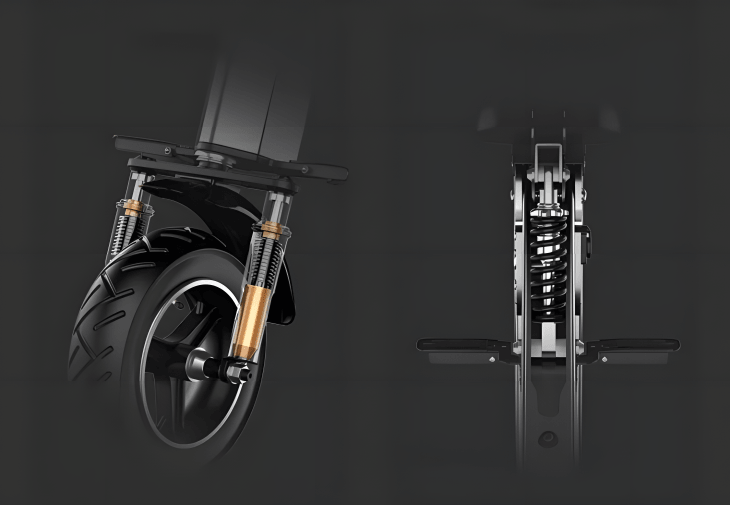

Comfort Suspension & Safety System
Designed with front and rear suspension systems and upgraded braking components for improved comfort and control.
Front hydraulic double suspension
Rear mechanical spring suspension
Front drum brake + electronic brake
E-ABS braking assistance
| Item | Specification | Item | Specification |
| Vehicle Weight | Approx. 16 kg | Front Wheel | 10-inch Off-Road Tire |
| Load Capacity | 120–150 kg | Rear Wheel | 10-inch Off-Road Tire |
| Range | 30–45 km | Braking Distance | 3 m |
| Max. Speed | 20–25 km/h | Braking System | Drum Brake + ABS Electronic Brake |
| Gradeability | 10°–20° | Motor Speed | 1,300 RPM |
| Battery Type | 18650 Power Lithium Battery | Frame Material | Aviation-Grade Aluminum Alloy |
| Charging Time | 3–5 h | Controller | Custom High-End Brushless Controller |
| Motor Power | 350W Suspended Brushless Motor | Drive System | Rear-Wheel Drive |
